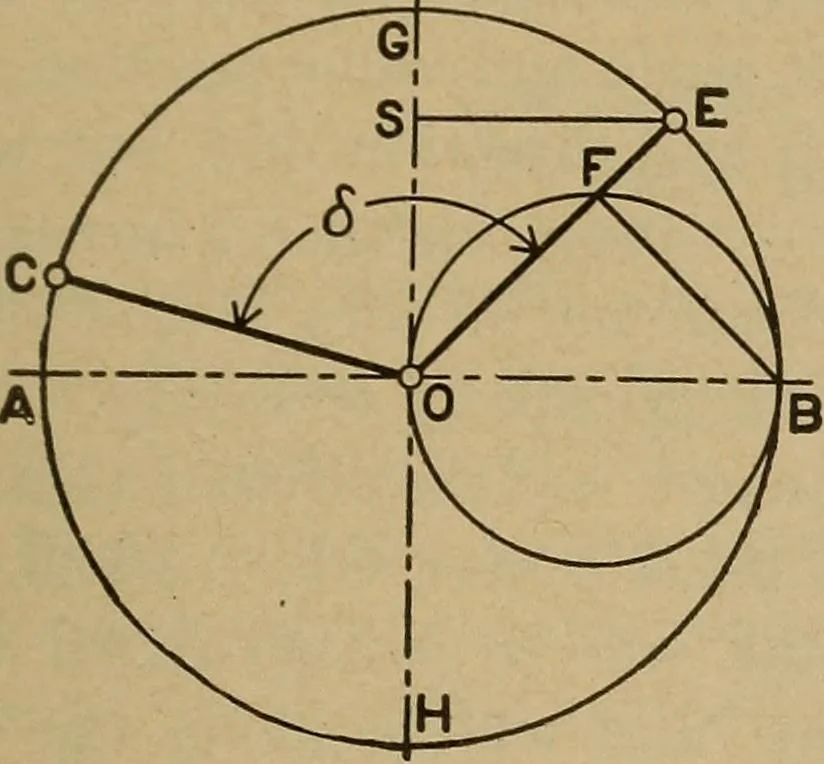

angle 5 and find thelength of ES or t. But a truly serviceable diagram should give t di-rectly from the crank angle, without the bother of repeatedly layingoff 8. One diagram meeting this requirement is derived in Fig. 221,where the figure made up of the reference line GH, the eccentric radiusOE,…
