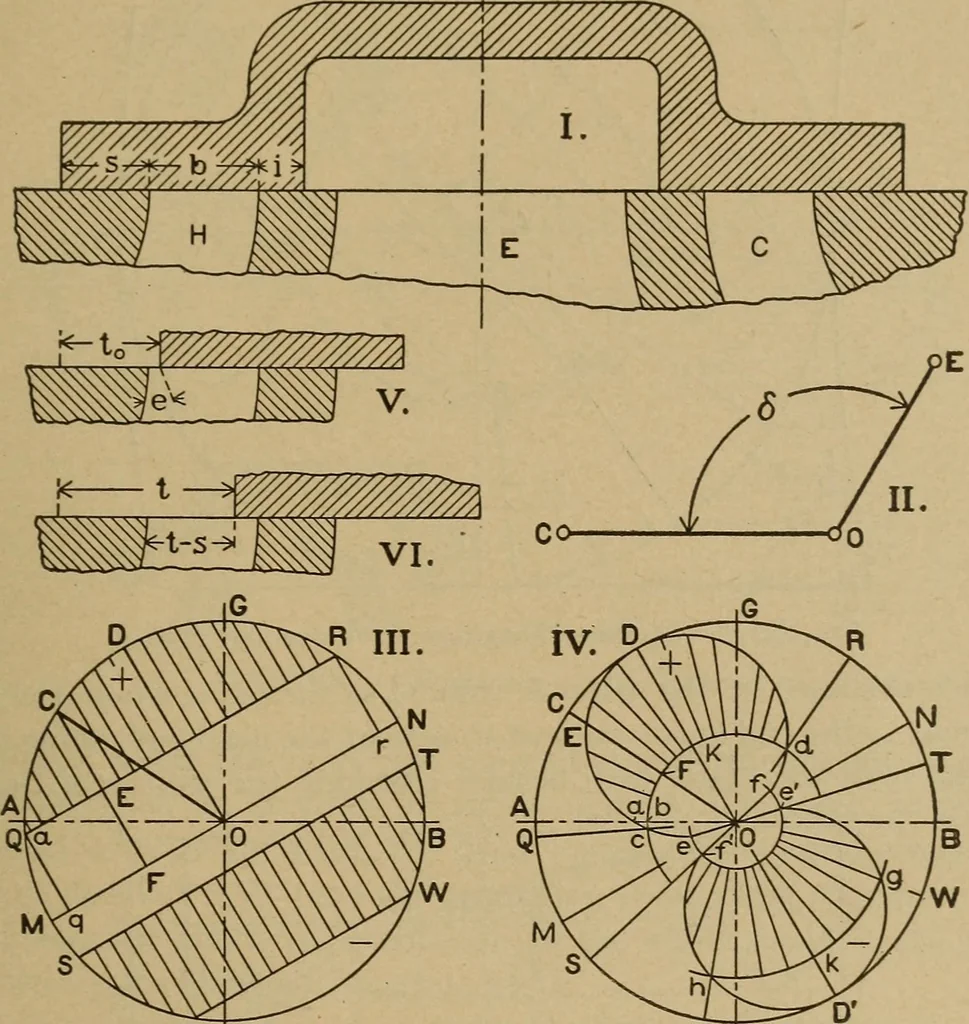

grams are shown in Fig. 224, § 37 (e)] SIMPLE SLIDE VALVE, WITH HARMONIC MOTION. 367 where the valve diagram (of either form) is combined with the piston-position diagram from Fig. 163: then DC and CF are simultaneous de-terminations, to be used, respectively, £is ordinate and abscissa in Fig.225 —… … V H V H Fig. 223. — Valve Diagrams. by this figure; but can be rather more clearly seen on the derived dia-gram given as Fig. 225, where the valve travel is plotted on the strokeline as a base. The curve got by this method is eUiptical in form, and with harmonicmotion for the piston as well as the…
