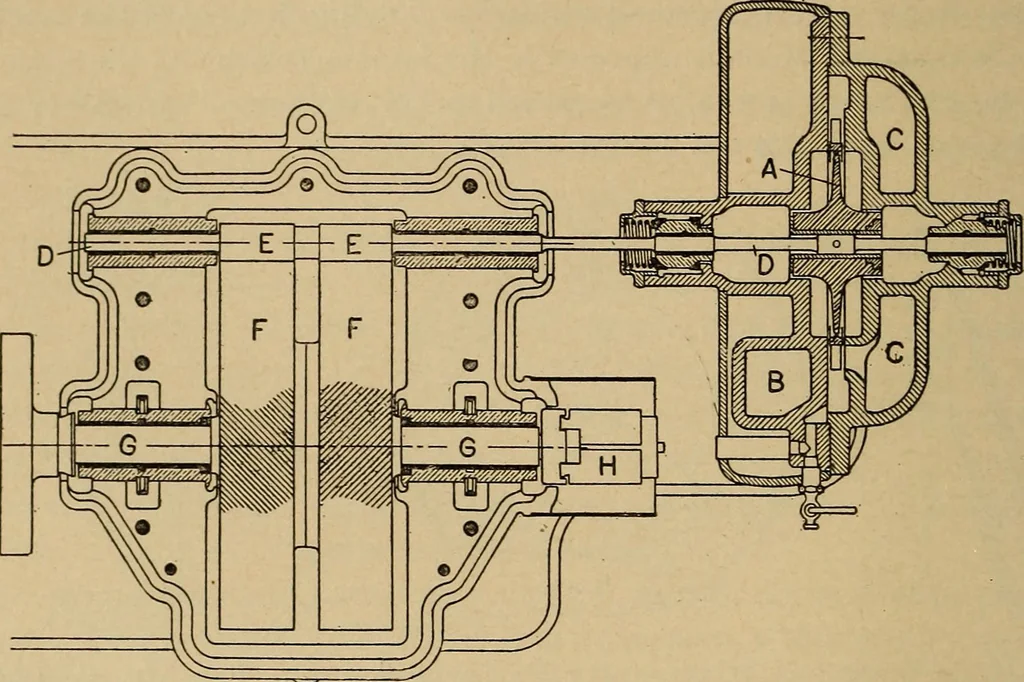

pansion or single-stage type is the De Lavalturbine, of which the essential form has been outlined in Fig. 16, whileFig. 18 shows the section of a complete machine. The nozzles drawfrom the steam chamber B, receiving steam of which the workingpressure has been fixed by a throttling governor. With… … Fig. 18. — Section of a 30-horse-power De Laval Turbine, with wheel about 8 in.in diameter at 20,000 r.p.m.; vane velocity about 700 ft. per sec. A. Turbine wheel. E, F. Speed-reducing gears, ratio B. Steam chamber. about 10 to 1. C. Exhaust chamber. G. Power shaft. D. Wheel shaft. H. Governor.…
