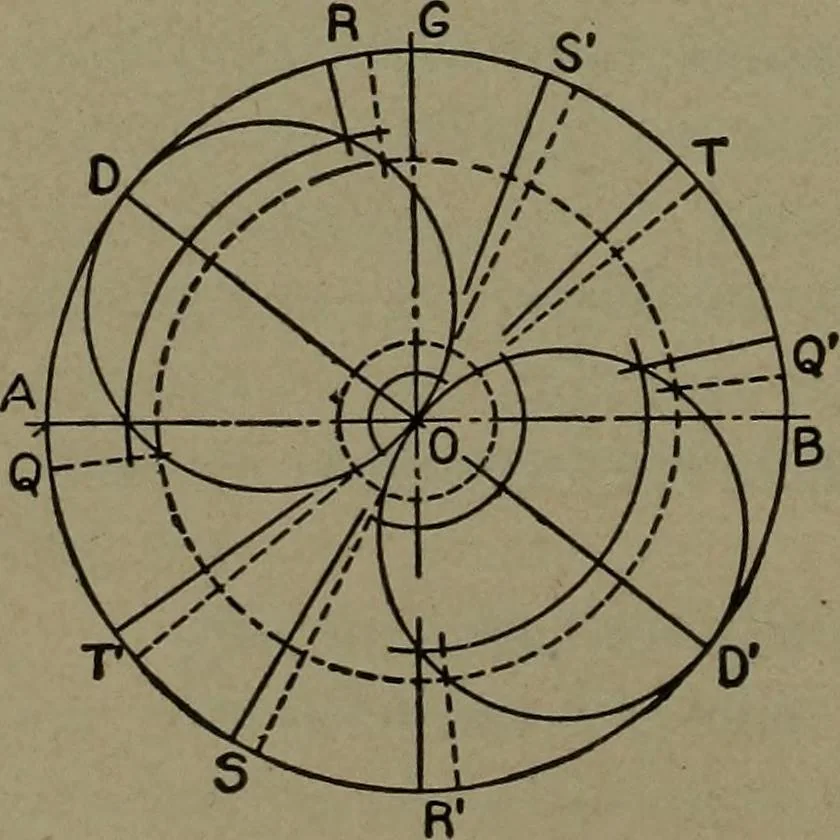

dicator, the valve can be set with theengine in running condition, stopping itfor adjustment after each trial. This lat-ter is, in many cases, the final method. (e) Change of Rod Length.—Theeffect of this adjustment is shown in Fig.232: the dotted lines show symmetricalworking or equal laps, the… … Fig. 232. —Rod Length Changed. § 38 (e)] VARIOUS VALVE-GEAR RELATIONS. 375 tion to the left will increase s and ir} decrease i and s — this notationdistinguishing the ends just as does that used for the events on thediagram. Then for the head end, admission is shortened and ex-haust lengthened;…
