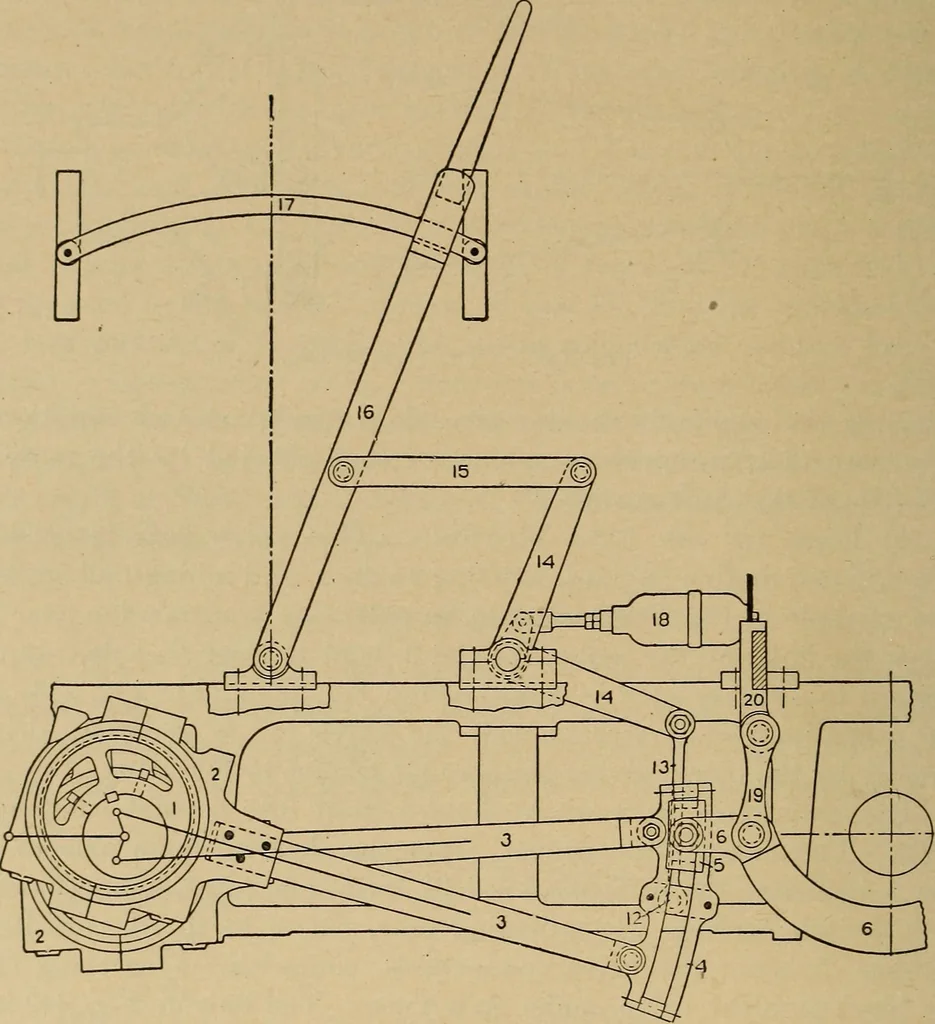

t and back as in Fig. 242, while the eccentricrods are forked so as to engage joint pins on the outside of these bars;and thus the block can get clear out into line with either rod. 384 VALVE GEARS AND GOVERNOES. [Chap. VIII. The reverse-lever system, or the adjusting gear, controls the powerof the… … Fig. 242. — A Locomotive Valve Gear. 1. Eccentric. 13. Suspension Rod. 2. Eccentric Strap. 14. Lifting Shaft. 3. Eccentric Rod. 15. Reach Rod. 4. Link. 16. ReversQ Lever. 5. Block. 17. Notched Arc. 6. Extension Rod. 18. Balance Spring. 2. Hanger Pin. 19. Extension-rod Hanger. 20. Bearing for…
