Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 210

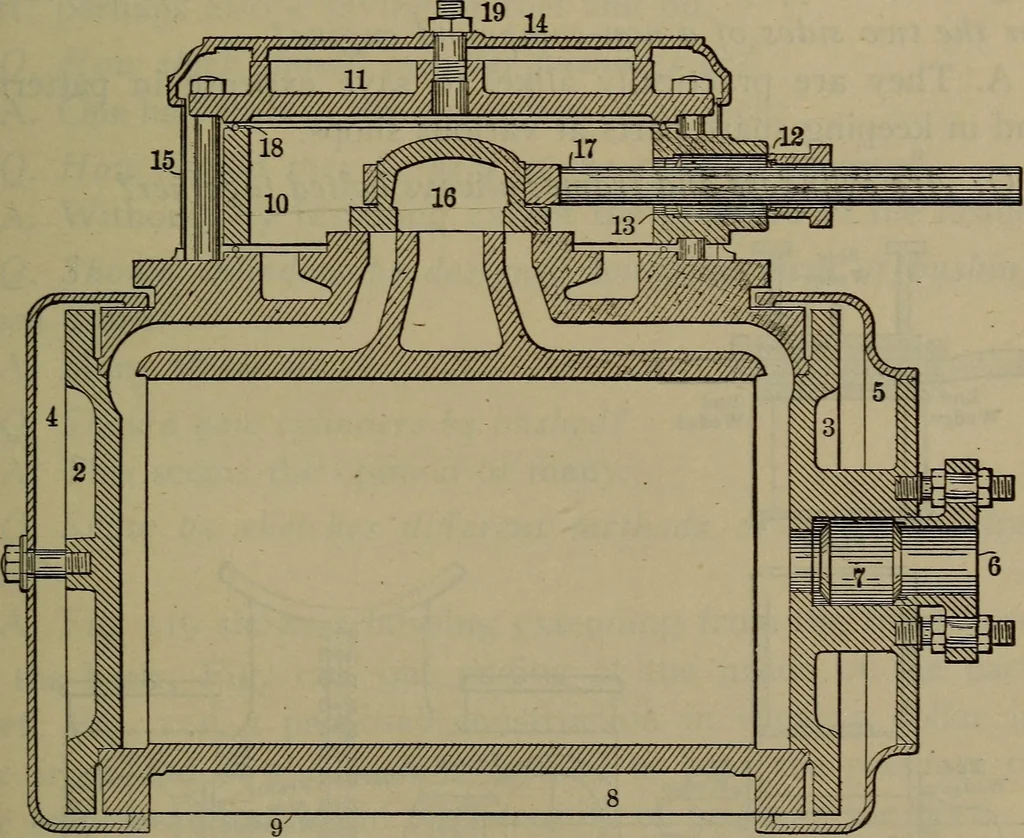

s, with steam-tight joints betweenthe heads and the cylinder-end flanges. The steam-chest issometimes in one piece with the cylinder, sometimes boltedthereto. Q. To what are the cylinders fastened? A. To bed-plates or bed-castings placed between them;these sometimes forming two separate pieces… … Fig. 117. Cylinder, Steam-chest and Attachments. 1. Cylinder. 2. Front Head, 3. Back Head. 4. Front Cover. 5 Back Cover. 6.Cylinder-gland, R and I,. 7. Cylinder-gland, Bottom-ring. 8. Wood gagging. 9.Casing. 10. Steam-chest. 11. Steam-chest Cap. 12, Steam-chest Gland. 13. Steam-chest Gland,…
