The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 443

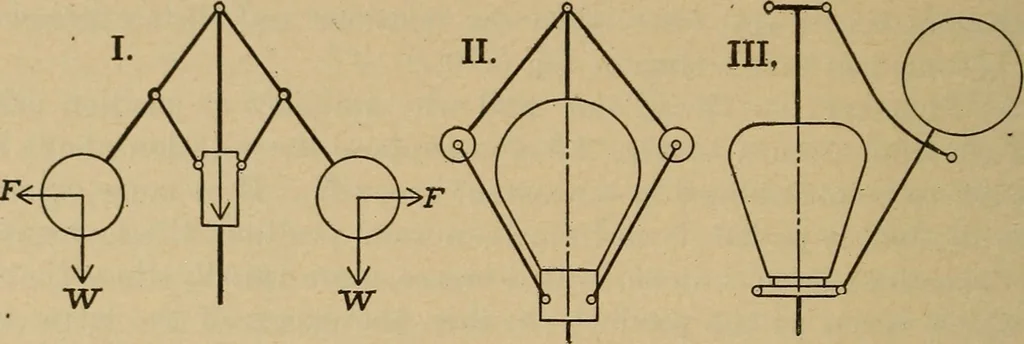

l Governor. — In Fig. 292 areoutlined three typical forms of this governor, all weight-loaded, or with 428 VALVE GEARS AND GOVERNORS. [Chap. VIII. gravity as the force that acts against the centrifugal force of the balls:sometimes the load is furnished partly by springs, especially in… … FiG. 292. — Types of the Fly-ball Governor: I. Common Low-speed Governor;II. High-speed Governor, Weight-loaded; III. The Proell Type. selves. No. II runs at high rotary speed, hence the balls are smalland most of the counterforce is furnished by the big central weight.No. Ill is a prominent German…
Steam-engines · Steam-turbines
