The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 562

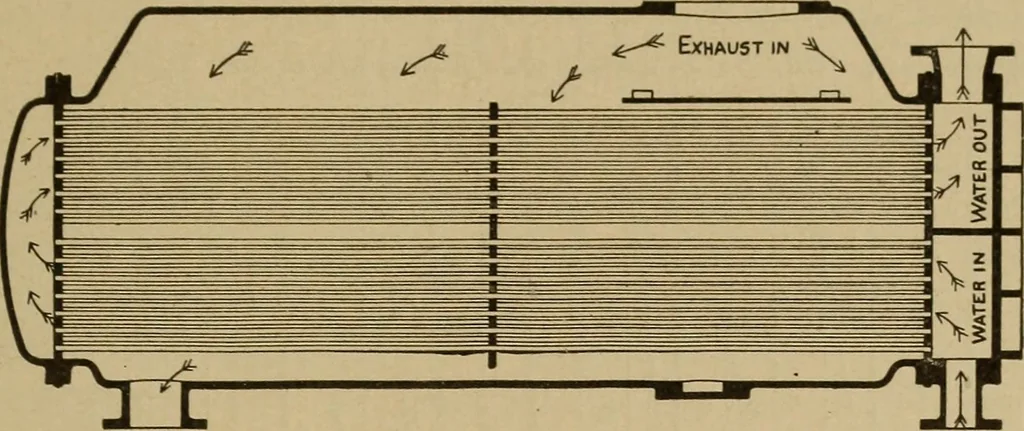

35 ft. or more aboveoverflow level in the tank into which the tail pipe discharges. Thenthe current of warm water flows out by gravity and, with the help of anarrow-necked ejector to insure entrainment, carries the air with it. § 53 (c)I CONDENSERS AND AIR PUMPS. 547 A pump is needed for raising… … Vacuum Pump Circulating Pump Fig. 389. — Typical Simple Surface Condenser. against the pressure of the atmosphere. Water enters at the topthrough a central nozzle, and steam is admitted to and guided againstthe water stream by a series of narrow conical passages m and aroundthe wall of the mixing…
Steam-engines · Steam-turbines
