Mechanical equipment of buildings; a reference book for engineers and architects (1916)

Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 429

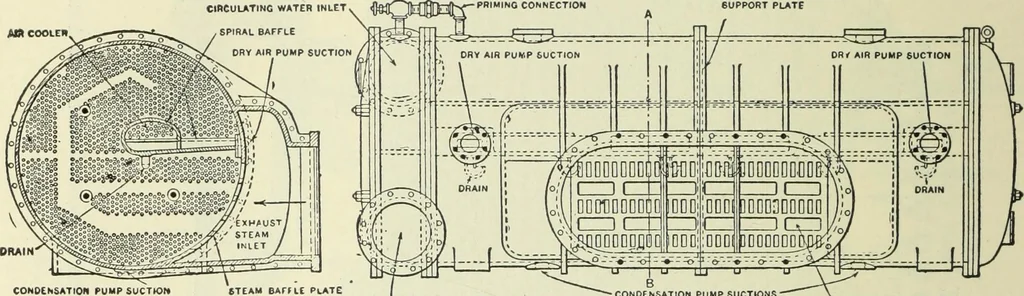

An illustration from Mechanical equipment of buildings; a reference book for engineers and architects, 1916, leaf 429 — PERSPECTIVE VIEW OFSPIRAL BAFFLE AND AIR COOLER 6UPPORT PLATE … CONDENSATION PUMP SUCTION STEAM BAFFLE PLATE SECTION THROUGH a-B CIRCULATING WATES OUTLET CONDENSATION PUMP SUCTIONS ELEVATION EXHAUST STEAM INLET Fig. 26. Well-Designed Cylindrical Condenser. Exhaust Steam Inlet Water Outlet
