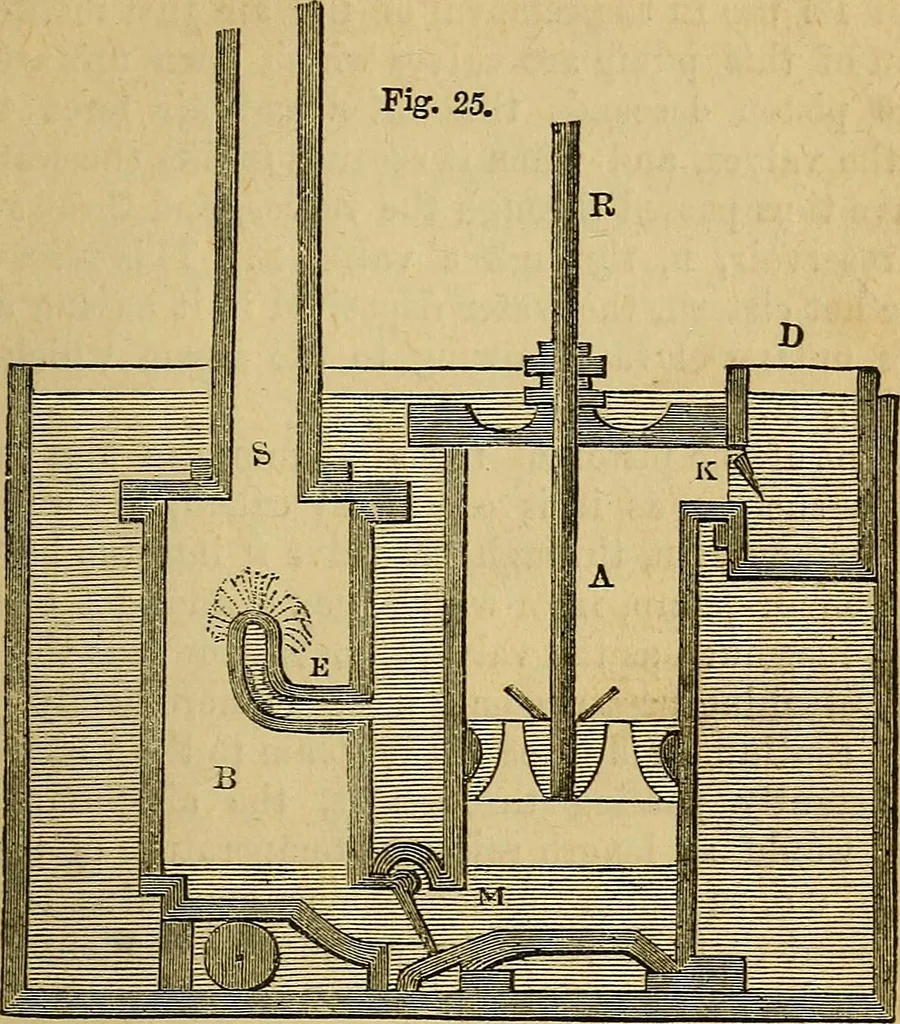

with great advantage in engines constructed on thisprinciple. 37. Since the condensing apparatus discharges such importantfunctions, it will be useful to show its structure and arrangement,in connection with the piston and cylinder. A section of such an apparatus is shown in fig. 25. A cistern,30… … considered as the continuation. A jet-pipe, e, enters the con-denser, and is bent upwards. It is terminated with a piece piercedwith holes like the rose of a watering-pot, and the cold water of thecistern, c c, being pressed in through the pipe, e, is thrown up inthe condenser, as shown in the…
