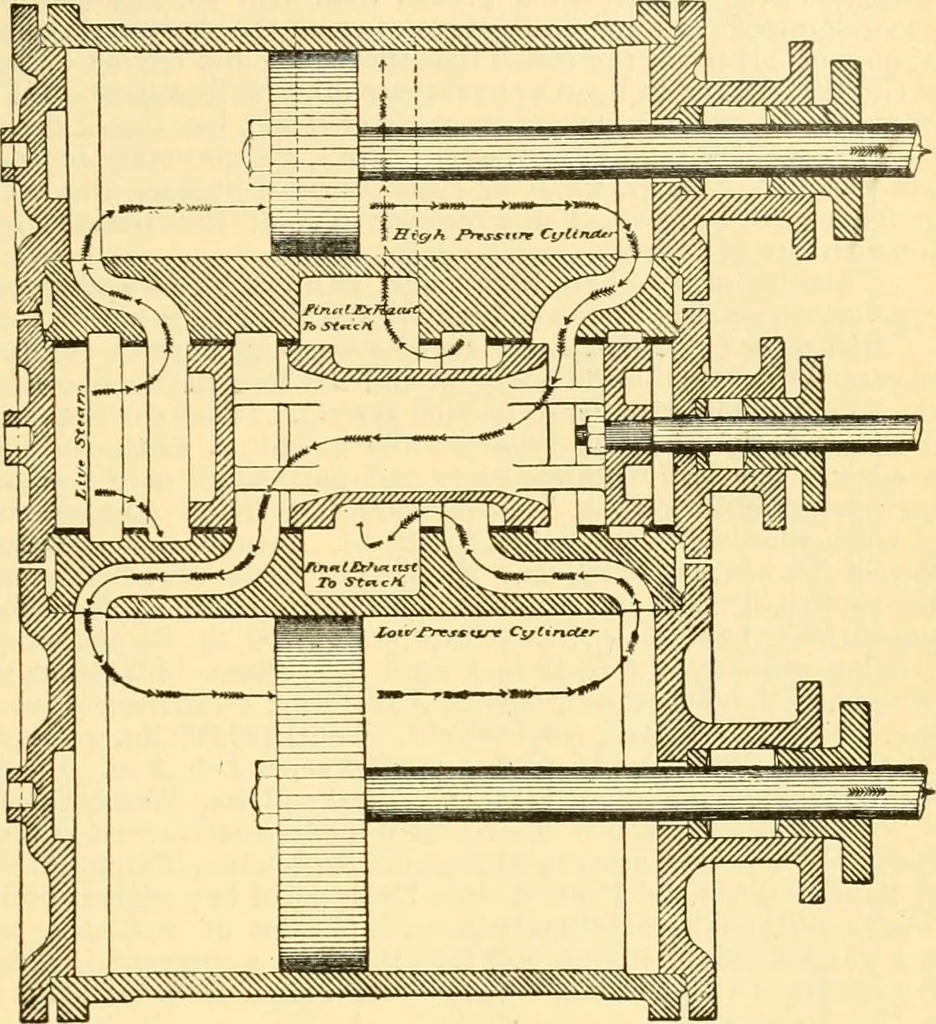

steam - chest,high-pressure cylinder, pis-ton-valve, low-pressure cyl-inder, and out at the finalexhaust-port, is shown bythe diagram Fig. 2. Fig. 3shows an external view ofthe cylinders and steam-chest. The arrangementof the cylinders is imma-terial ; in locomotives withsmall driving-whcel.s,… … Fig. 3.—Section through cyhnder. comotives by the Committee of Sciences and Arts of the Franklin Institute, which caused itto be awarded a gold medal; It can be applied to locomotives having outside cylinders, without increasing the entire
