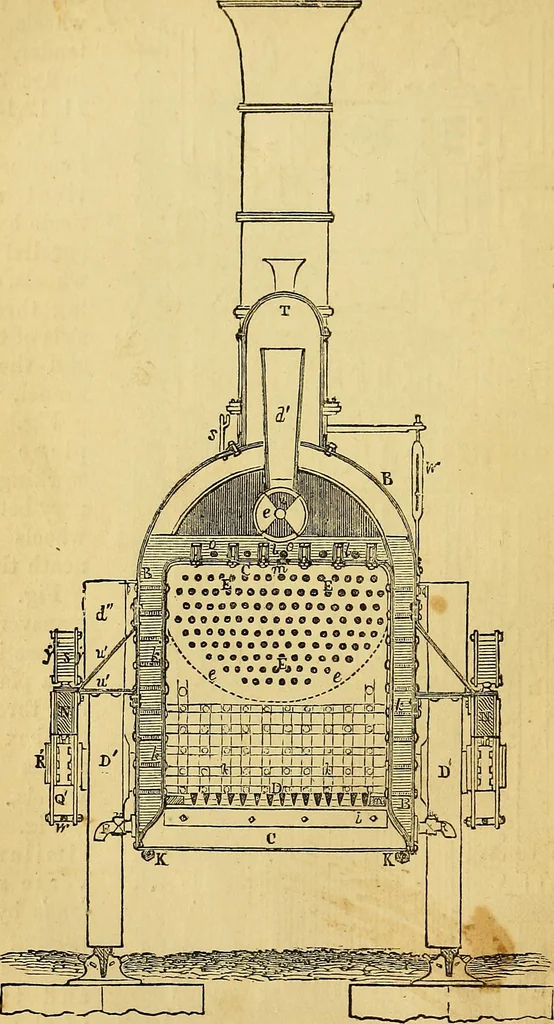

rand the smoke-funnel. Fig. 8 is aplane of theworking machi-nery between thewheels and be-neath the boiler. Fig. 9 is atransverse verti-cal section madeby a plane pass-ing through thefire-box at rightangles to thewheels. Fig. 10 is asimilar trans-verse section,made by a planepassing throughthe… … Fig. 13 is a longitudinal vertical section of the tender, by aplane at right angles to the wheels, and midway between them. Fig. 14 is a plan of the tender seen from above. The same parts in the different drawings are generally indicatedbv the same letters. lf?6 PLANS AND SECTIONS. The principal…
