Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 104

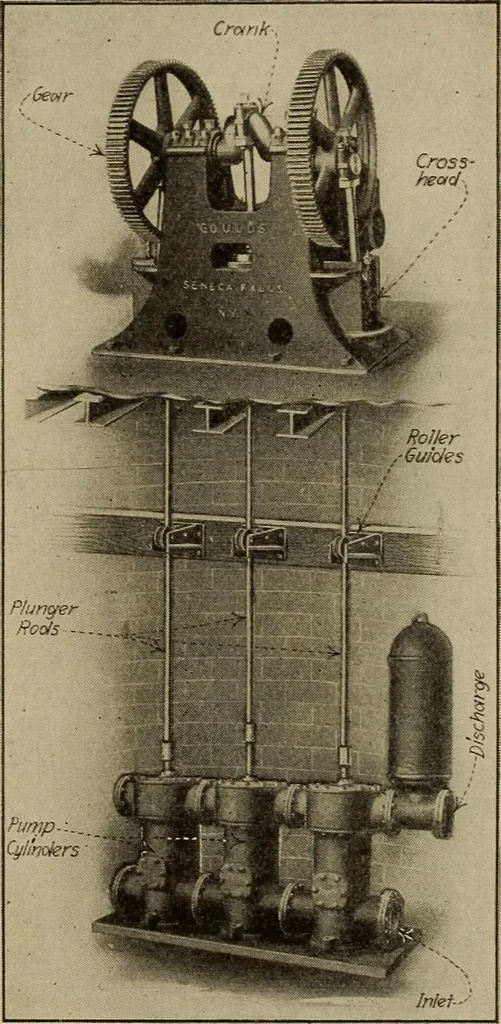

98.—A Chain-Driven Power Pump. (2) Duplex power pumps (Fig. 90, 200, and 201) in which thepumping operation is performed by two pistons or plungersoperated by a common crank-shaft, (3) Triplex power pumps Sec. 87] CRANK-ACTION PUMPS 83 (Fig. 93) in which the pumping operation is performed bythree… … Fig. 99.— Goulds Triplex Deep Open-Well Pump. Note.—Power may be supplied to power pumps by electric motors(Fig. 96), gas or gasoline engines, water-wheels, steam engines or line-shaft-ing variously driven. This power may be transmitted to the crank-shaftsof the pumps by means of belts (Fig. 97),…
Steam power plants · Pumping machinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
