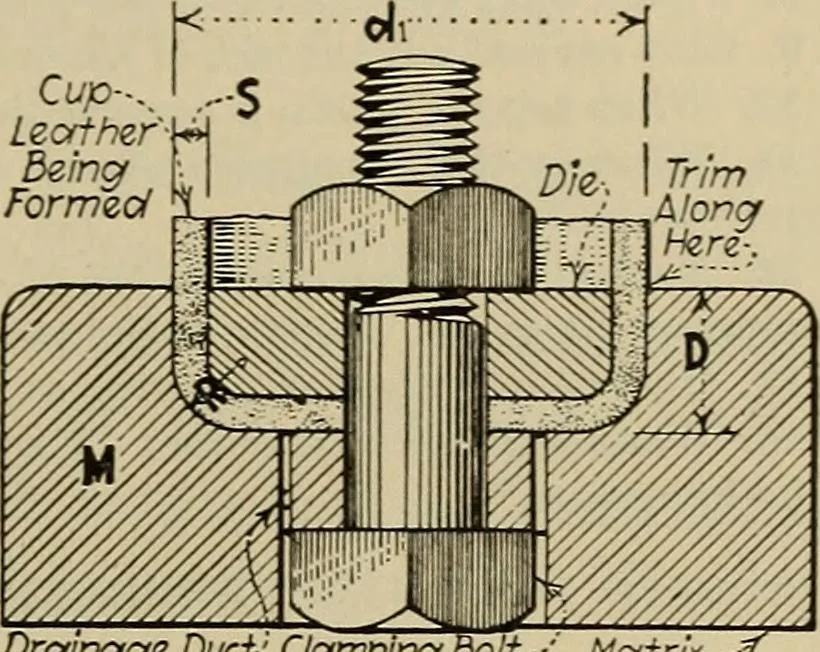

>i2 in. greaterthan the thickness of the leather,(Table 110). The radius of themould at R should be about onethird the height of the washer. A disk of leather, the proper diameter and thickness, is soaked in water untilsoft. Then it is drawn down slowly into shape by means of thebolt. The… … Drainage Duct-: ClampingSct- Fig. 119. -Mold For FormingLeathers. Cup- 110. Table Of Dimensions Of Cup-Washers For PumpPlungers. Diameter of pumpcylinder in inches Thickness ofleather in inches D Depth of cupin inches 2 He 5A 3 He H 4 H l 5 H m 6 H IK QUESTIONS ON DIVISION 3 1. What are the two…
