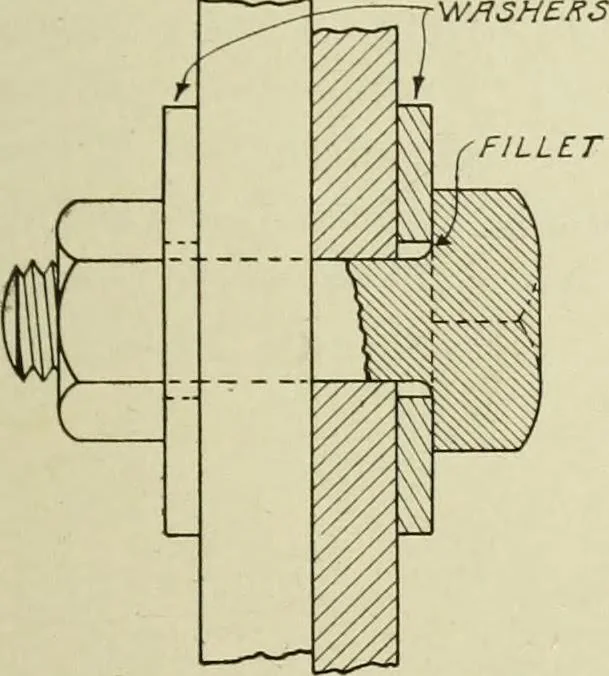

from the rolling mill and are not finished to exact size. Theydo not fill the holes fully. Their principal use is for assemblingmaterial in the shop or in the structure, preparatory to riveting.They may remain in the finished structure if not subjected to shear.Such a case is a beam resting on… … Fig. 08. Part Section of Bolted JointShowing Fillet Under Bolthead STKKL COXSTIUVTIOX 7:; ferring to thfe handbook, it is found that the diameter at the root ofthe thread is 0.G2 inches. From this, the area, if not given in thetable, can be computed and is found to be 0.30 square inch. Thenthe…
