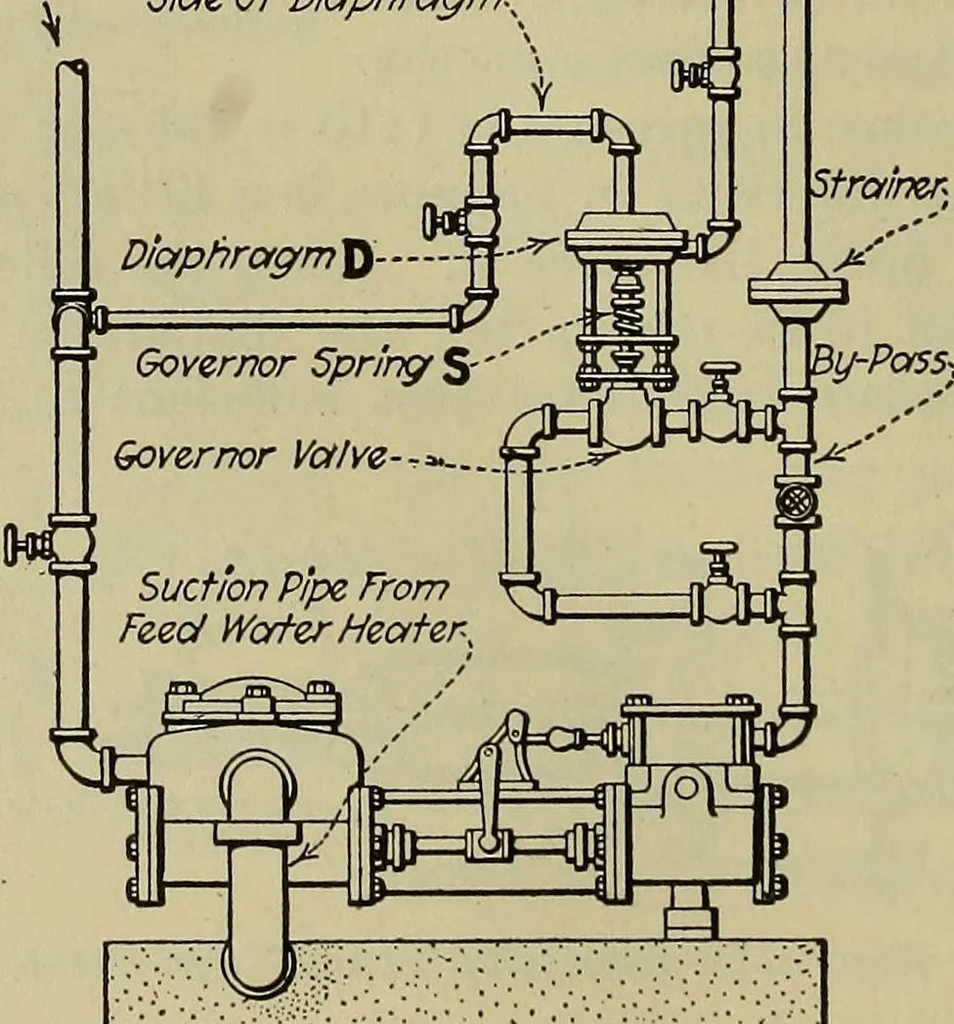

Suction Pice From Feed- Water HeaterFig. 213.—Direct-Acting Boiler-Feed Pump Equipped With Fisher Governor. Steam Mam--^ From Main Steam Line To Under SideOf Diaphragm- /Main Feed Line To Boilers \ From, Main Feed Line To Upper Side Of Diaphragm SteamSupply ToPump-, … Fig. 214.—Direct-Acting Boiler Feed Pump Equipped With Kieley Governor. of the Fulton design shown is that it uses only one stuffingbox where the Fisher design requires two. One advantage Sec. 234] BOILER-FEEDING APPARATUS 201 of the Fisher design is that the steam pressure can be shut offfrom the…
