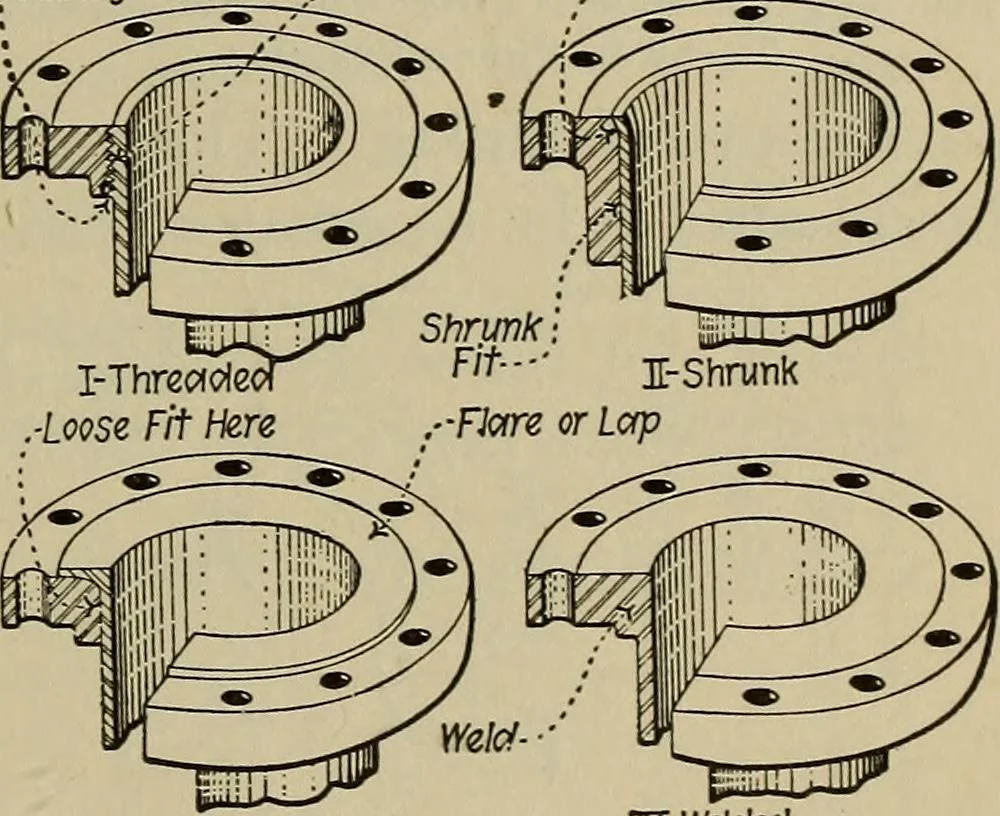

ting both the flange andpipe-end to a welding heat and squeezing them togetherunder heavy pressure, into a single mass. Flanges may alsobe arc-welded or acetylene welded to the pipe-ends. Note.—Pipe-end flanges are commonly called companion flanges. Note.—The cost of an extra-heavy forged-steel… … H-Ftared or LappedFig. 350 ■JZ-W\<ted Methods Of Securing CompanionFlanges To Pipe Ends. 24 370 STEAM POWER PLANT AUXILIARIES [Div. 11 Forged-steel shrunk, 120 per cent. Cast-steel shrunk, 105 per cent. Cast-iron shrunk, 60 per cent. Forged steel flared or lapped, 95 per cent. Cast-steel flared…
