Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 47

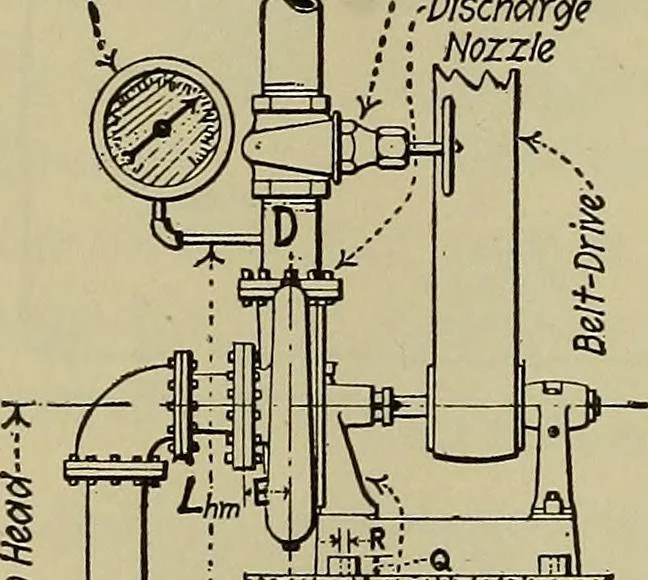

ressed by the following formula: WimLhu (24) uhp 33000 (horse power) 26 STEAM POWER PLANT AUXILIARIES [Div. 1 Wherein T?UhP = the theoretical hydraulic horse power.WzTO = the weight of liquid pumped, in pounds per minute.Lhu = the total useful head, in feet, = the head, in feet, corre-sponding to… … w —-- : Centrifugal.Pump • -Suction Pipe- .-^-foot-Valve Fig. 24.—Pump Showing 40Lb. Per Sq. In. Gage PressureAt Discharge Nozzle. power, as computeddiagram (Fig. 23). Example.—A direct-acting steam-pumpmoves 4,160 lb. of water per min. againsta total useful head of 36 ft. What is thenet horse…
Steam power plants · Pumping machinery
