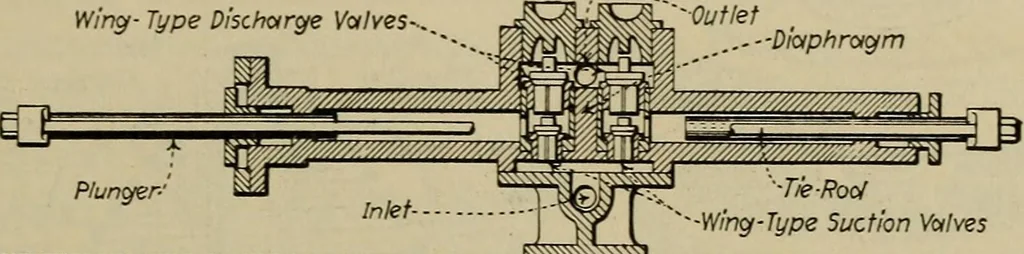

DIRECT-ACTING STEAM PUMPS 45 Note.—The Hardness Of Rubber Composition Valve-Discs shouldbe adapted to the special requirements of the service for which the discsare intended. The valve-discs of vacuum pumps should be soft andpliable. Such discs are also suitable for pumps working against… … \\\\\\\\\\\>wwww\. w \\\ w\\www Fig. 45.—Water-End Of Direct-Acting Steam-Pump For Hydraulic-Pressure Service* service. For pressures from about 150 to 300 lb. per sq. in., specially-hard vulcanized rubber composition valve-discs generally suffice. Metalvalve-discs are required for pressures…
