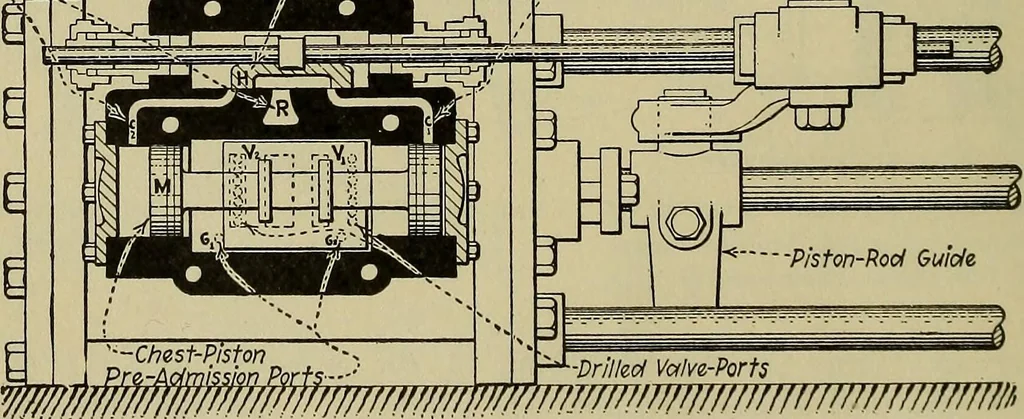

Reversing Valve. Exhaust Cavity wmsmtmmmksmm Fig. 66.—Sectional Elevation Of Steam-EndOf Cameron Direct-Acting Simplex Steam-Pump, Showing Inside-Operated ValveMechanism. … Fig. 67.—Plan Of Steam-Valve Gear Of Burnham Direct-Acting Simplex Steam-Pump. in each end. The spaces between the ends of the plunger, F, and theheads of the steam chest will thus be filled with steam. Steam will alsoenter the cylinder through the port Pi and drive the main piston, C,to the left.…
