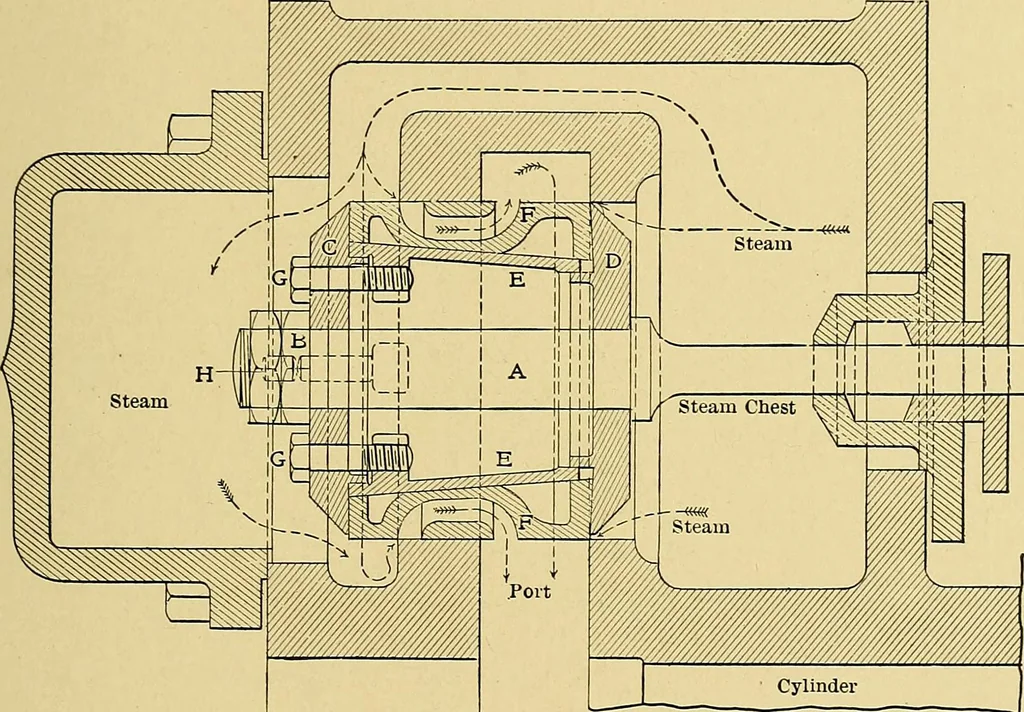

Sectional View of Packing Ringi … Cylinder 3 FIG. 114.— LENGTHWISE SECTION OF STEAM VALVE. ALSO THE VALVE REMOVED,AND A SECTION SHOWING TONGUE. around. This method of adjustment applies to both steam and exhaustvalves. • The Separate Steam and Exhaust Valves The separate steam and exhaust valves are shown in Fig. 115. Theexhaust…
