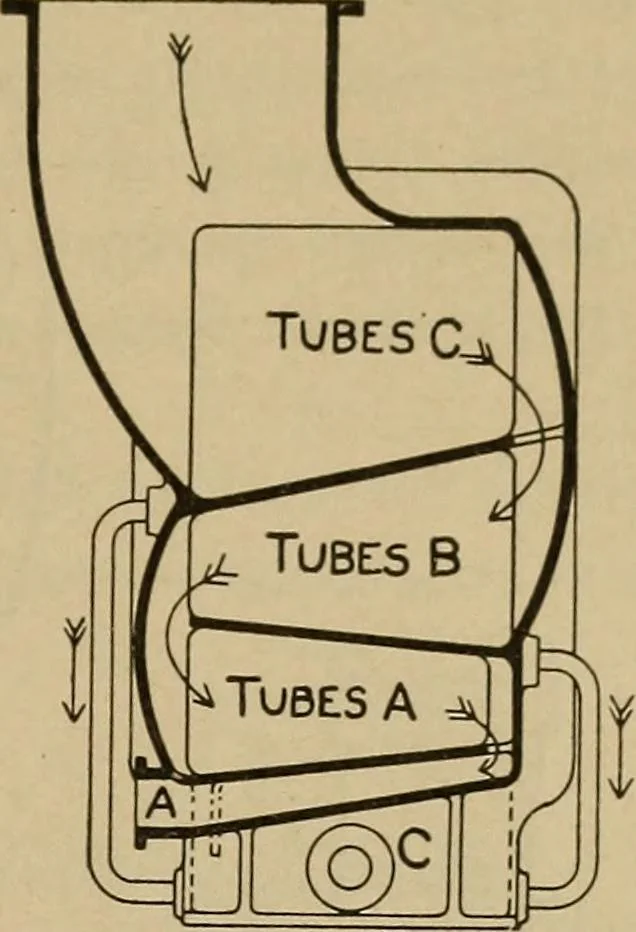

ive passage to steam, and these holes are staggered insequence, so as to promote circulation. Evidently, this arrangementwill largely prevent cooling of the water of condensation. Note thepassages formed between three groups of tubes in the first section; these ooooooooo ooooooooo ooooooooo… … Fig. 396. — Wheeler Dry-tubeCondenser. Fig. 397. —Early Form ofContraflo Condenser. give better access of steam to the second section, and insure high ac-tivity in the latter. Some such scheme of permitting freer flow amongthe higher tubes is now quite common. The pioneer design * embodying the…
