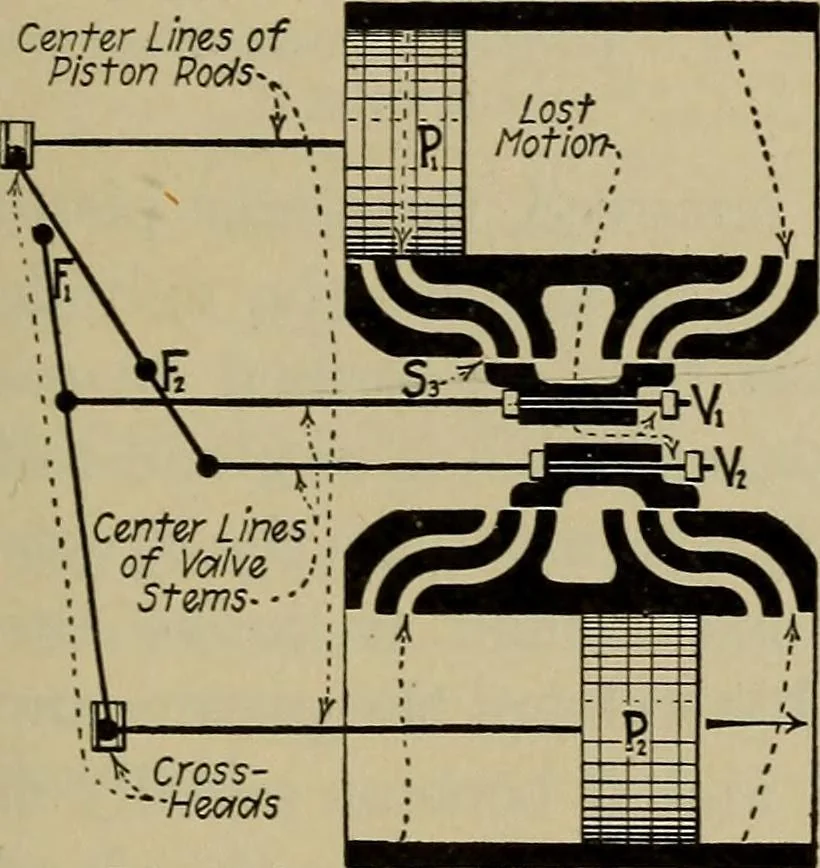

n ofsteam behind piston P2, coincident with the arrival of that piston at theend of the cylinder. Piston Pi (Fig. 74) has finished its stroke. Coincidentally, it hasmoved V2 to the limit of its right-hand travel. Steam-port *S2 has thusbeen fully opened for admitting steam behind piston P2. Piston… … Exhaust Port-■■ Admission Port- Fig. 74.—Piston Pi At End Of InboardStroke And On Point Of Reversal. PistonPz Approaching End Of Head-End Stroke. Admission Port—^ Exhaust Port—.Center Lines of ^¥Piston Rods-.
