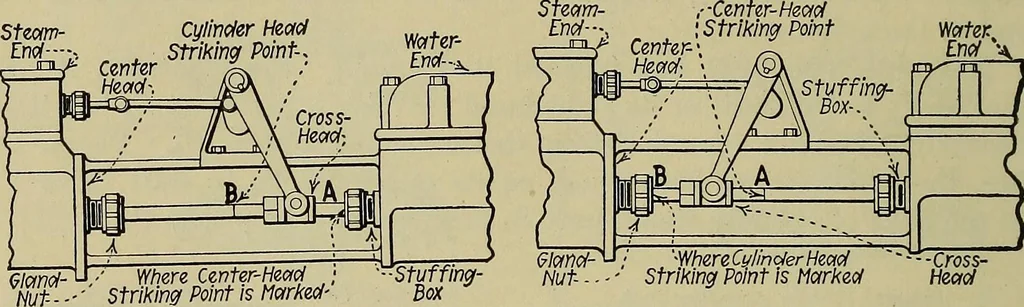

ods may be determined asfollows: The packing should be removed from the piston-rod 62 STEAM POWER PLANT AUXILIARIES [Div. 2 stuffing-boxes (Fig. 76) and the glands should be screwed uptightly. The cylinder-heads being removed, the steam-pistons should be pushed up solidly against the center-heads.A… … Where Center-HeadStriking Point is Marked- Fig. 76.—Marking Center-Head StrikingPoint. Fig. 77.—Marking Cylinder-Head Strik-ing-Point. ■Steam End Rocker Arm heads of the water-cylinders being removed, the steam-pistonsshould be pushed up solidly (Fig. 77) against the cylinder-heads. A line, B,…
