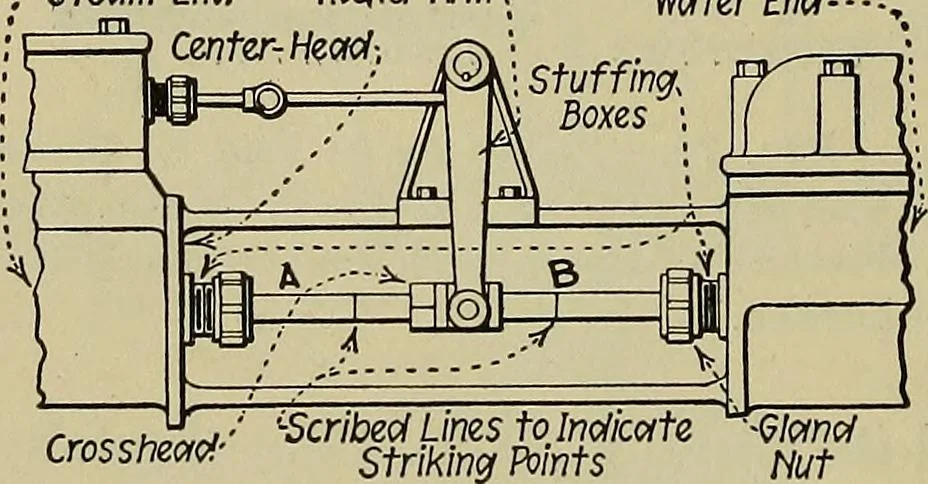

achrod flush with the faces of the steam-end glands or gland-nuts.The scribed lines, A and B, (Fig. 78) thus establish the striking-points. The lines should be prick-punched to make themdiscernible for future reference. By shifting the pistons until 4 and B become equally dis-tant (Fig. 78) from… … Cross head Fig. 78. — Striking-Points EquallySpaced, Rocker-Arm Plumb, Crosshead InCorrect Position. Note.—The crossheads of new duplex pumps are, generally, so securedto the rods as to preclude possibility of error in restoring the crossheadsshould they at any time be temporarily removed. The…
