Steam turbine engines : their construction, care and operation (1910)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago : Frederick J. Drake · leaf 113

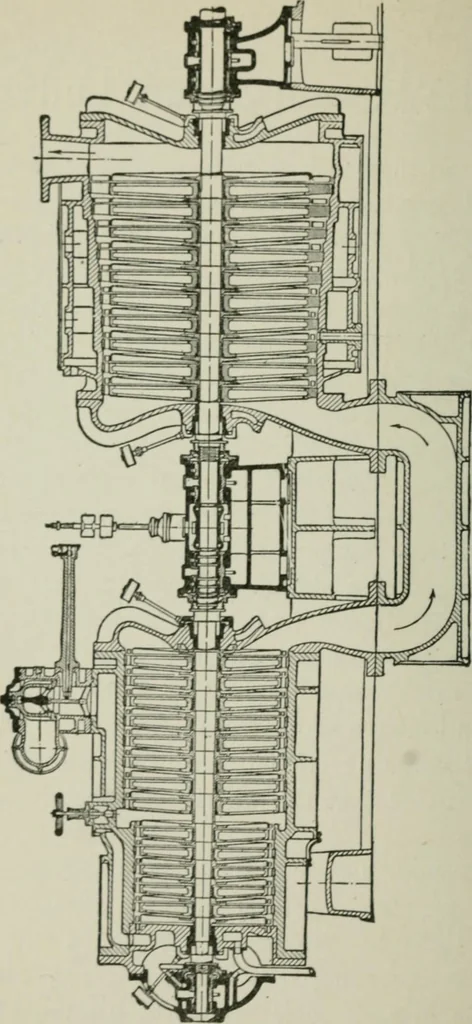

. 291 shows a sectional view of the machine, in whichit is to be noted that the wheel discs are riveted to theirhubs. Fig. 292 shows a view of the turbine with generator, andoil equipment. The construction of the wlieels, and divisionwalls can easily be seen in Figs. 293. 294 and 295.… … Fig. 291The most recent Kateau turbine is of the action type,that is to say, expansion of the steam is fully carried out in The Rat can Tarhine 1(H>
Steam-engines -- Design and construction · Steam-turbines -- Handbooks, manuals, etc
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
