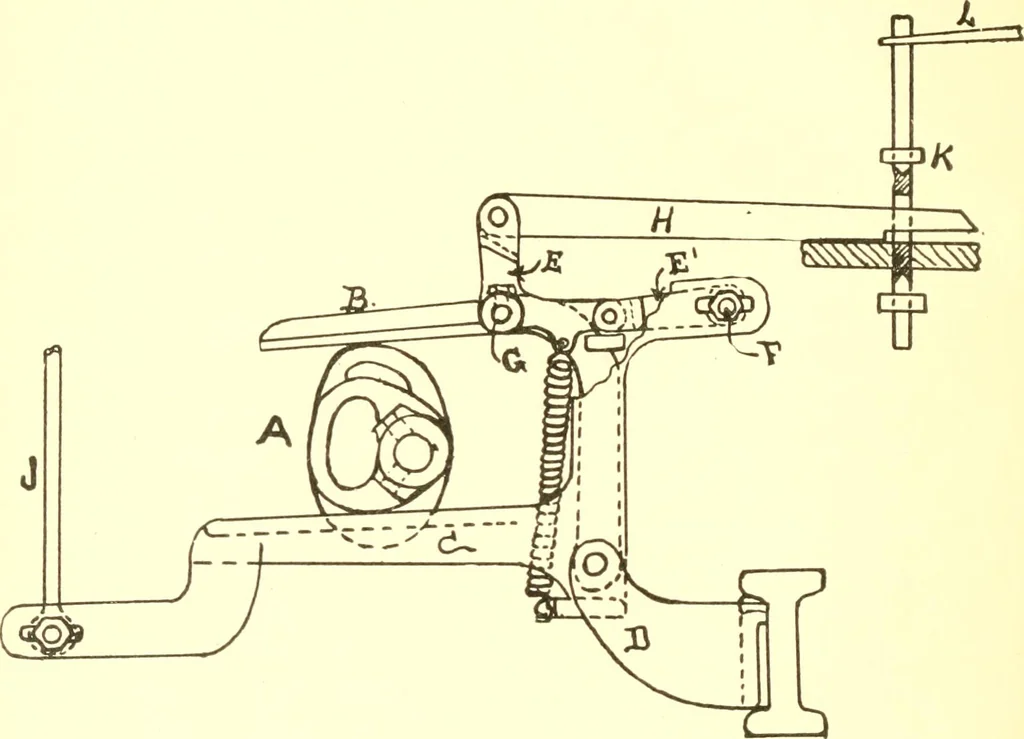

X X Fig. 9 and 10. The box chain is illustrated at Fig. 10, using the second line.X represents riser, empty squares represent sinkers. S in-dicates single lever. C indicates compound lever. M indi-cates multiplier lever. 48 WEAVING PLAIN AND FANCY. STILL BOX MOTION. This motion is indispensable to… … Fig. 11. of these motions is illustrated at Fig. 11. A double cam A isfixed on the pick cam shaft. This cam revolves between thetwo levers B and C, which are pivoted at D. A lockinglever E is mounted on a stud on the upper lever at G, saidlever E locking with arm E^ mounted on stud F fast in lower…
