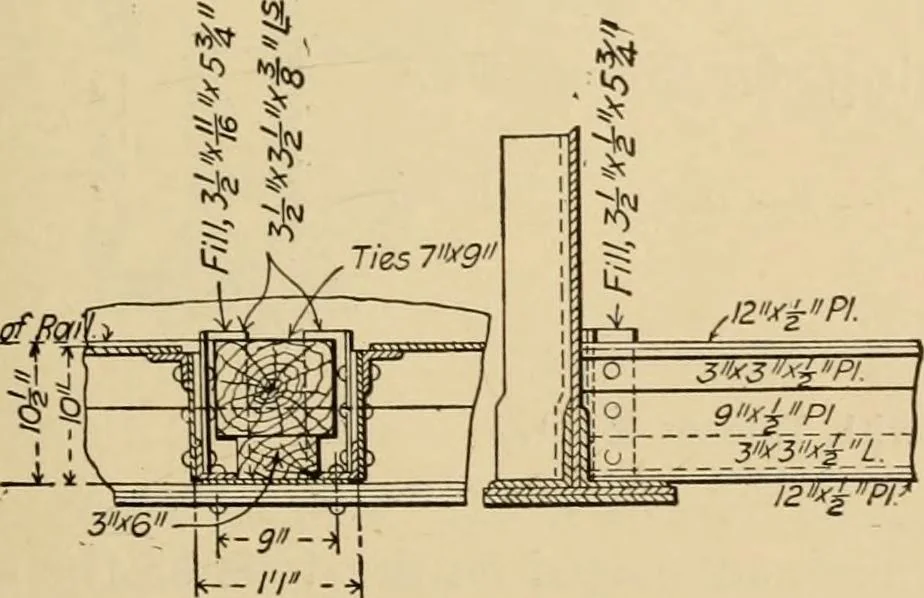

the webs are con-nected and stiffenedby vertical diaphragmsshop-riveted to one weband field-riveted to theother. The end andtop flange angles of thetransverse girder havecover plates, and thelatter, as well as thelattice-bars on the lowerflange, are field-riveted to allow for separate shipment and… … Floor of 50 Foot SpanFloor Detail. 27^ Bridge constrvction its webs being made with single plates. It has no web-conneC-tions to the longitudinal girders, but supports them all on rein-forced seats at the extremities of the upper flange. Bent Bihas a box girder shipped complete. Its webs are…
