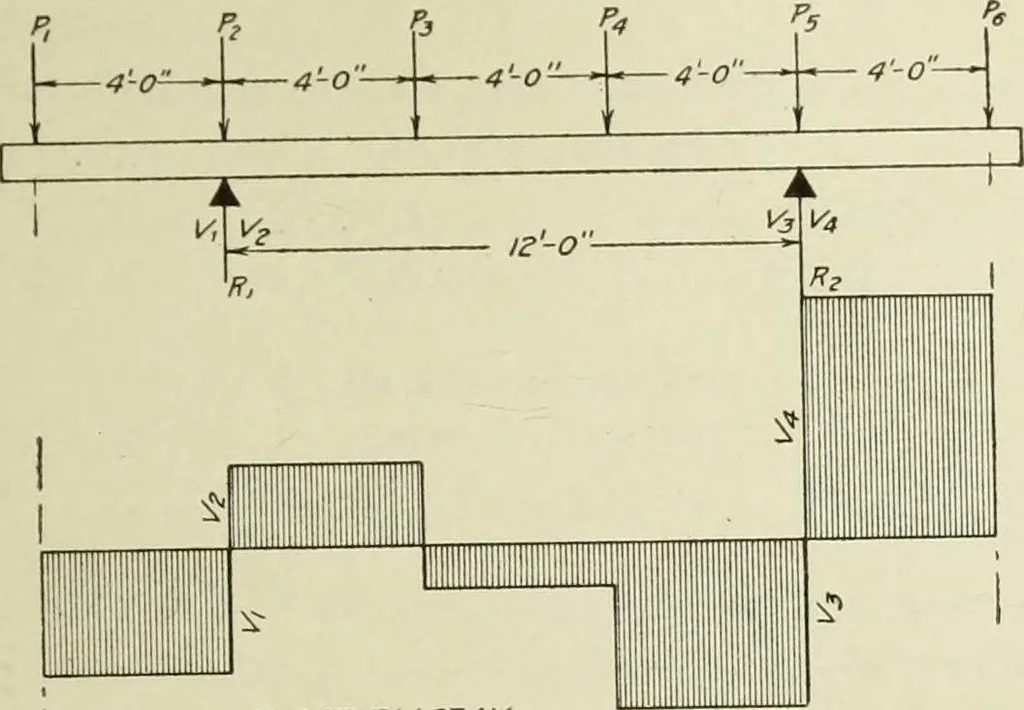

th Ends.Fig. 79 represents a beam resting on two supports and projectingbeyond both of them. It supports concentrated loads as shown.The loads are P,= 15,000 #P2 = 15,000 #P3 = 15,000 #P4 = J5,000#P5= 15,000 #P8= 30,000 # Total load = 105,000 # STEEL CONSTRUCTION To determine the reaction R2, take… … SHEAR DIAGRAM
