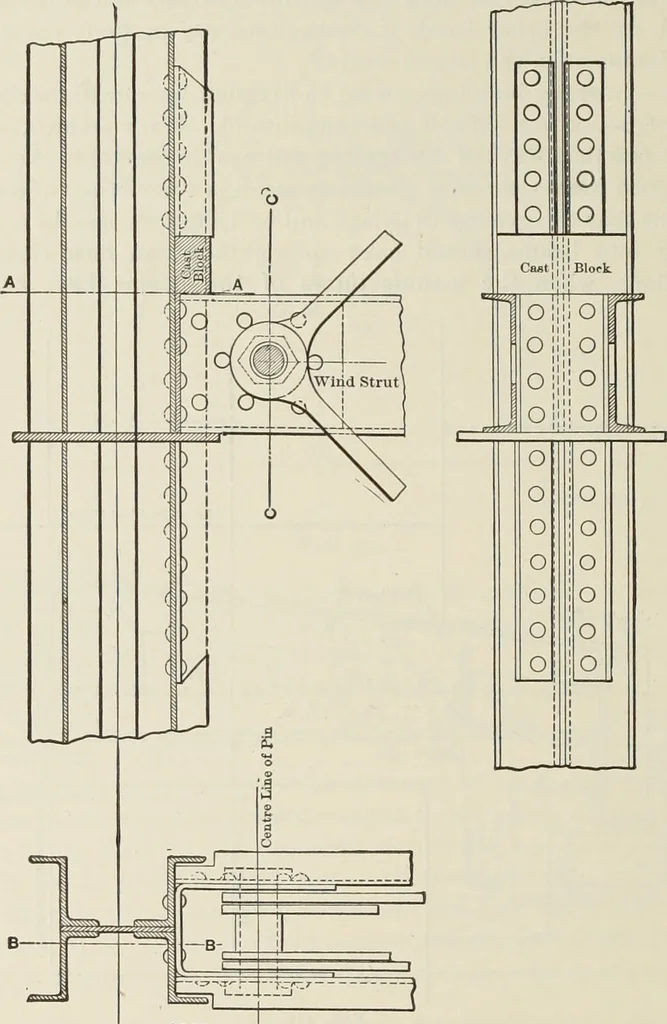

shown in this case,the beam marked A may be calculated as though it were one continuous beam to the end ofthe bracket. If the bracket were attached only to the beam marked B, the latter would twistto some extent, and a very little yielding on the part of the beam in this way would make thevertical… … SECTION A-A Fig. 448. thrust of the arch. Double beams should always be provided with separators to equalizethe load. Connections in high buildings, wherever possible, should be riveted. Columns should be connected to each other through the cap-plates by four or more rivets.This should be…
