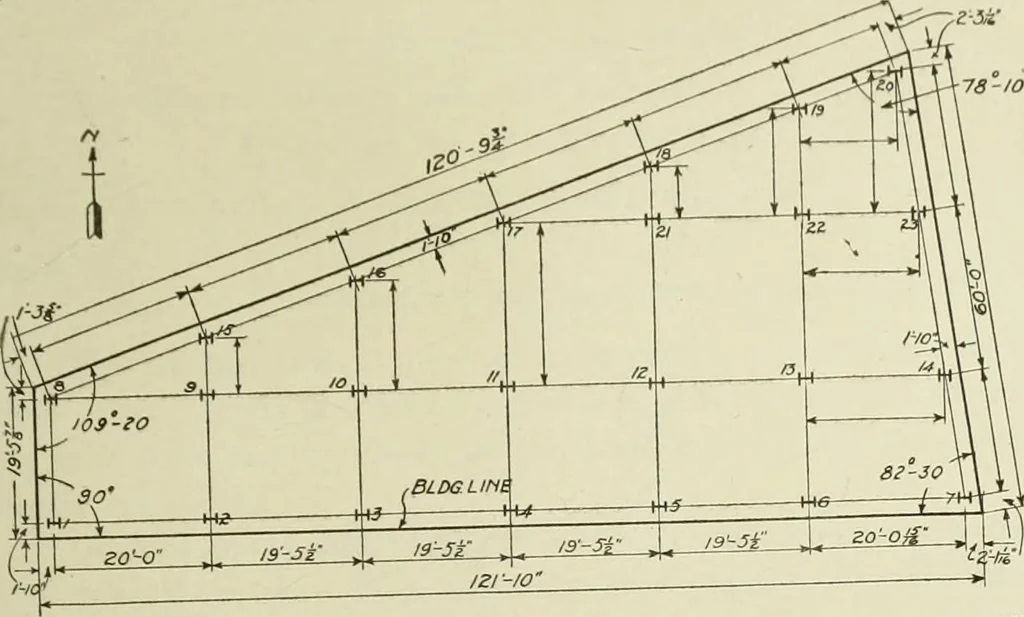

erecting; thusE on the east face of a column, or N on the north end of a girder. Column Centers. Having established the building lines, thenext step is to dimension the column centers. The simplest situa-tion is had when the building is rectangular and the columns are inrows in both directions.… … m. 207. Diagram Showing Method of Dimensioning CoUnnn Centers in an Irreguiar Building With an irregnlarlv shaped building, the dimensioning becomesmore complicated. One building line should be adopted as a reter-ence line, taking the one to which the greatest number o columnlines are perpendicular…
