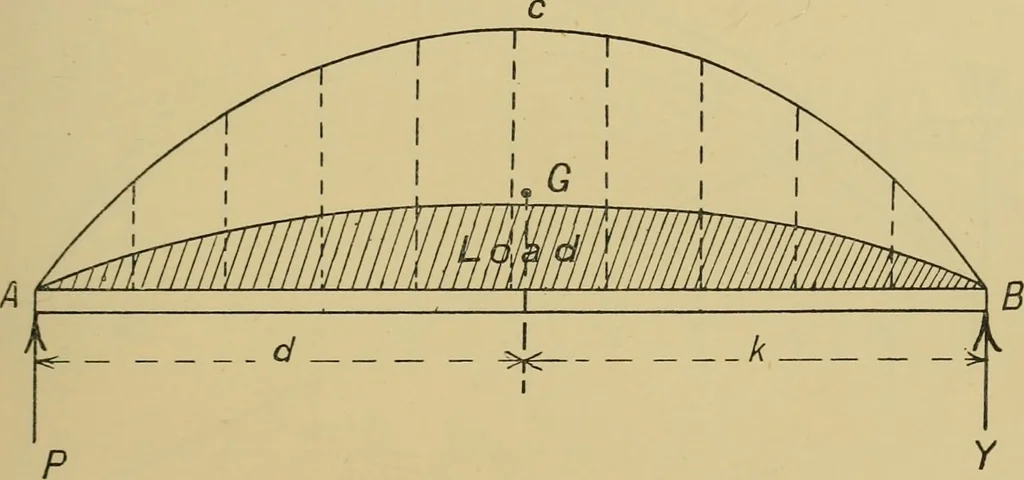

supports at the ends will be unequal. To find the suj>porting pressures at the ends of the bar.—Let L = totalload, and P and Y the supporting pressures.ThenL = P + Y. (PxAB) + (YxAB) = Lx ABPxAB and LYxAB = k = d Thus, so far, we have obtained the total load, and the pressure at eachend of A B… … Fig. 38.—Curve of Weiglit A C B for a loaded bar. Let AB, fig. 39, represent the bar, with the curve of loads A C B uponit, with ordinates at 2 ft. intervals. Make A M (set oif above A B) equal tothe pressure P, and B^N equal to the pressure Y (set oS below AB) Theshearing stress at any point in…
