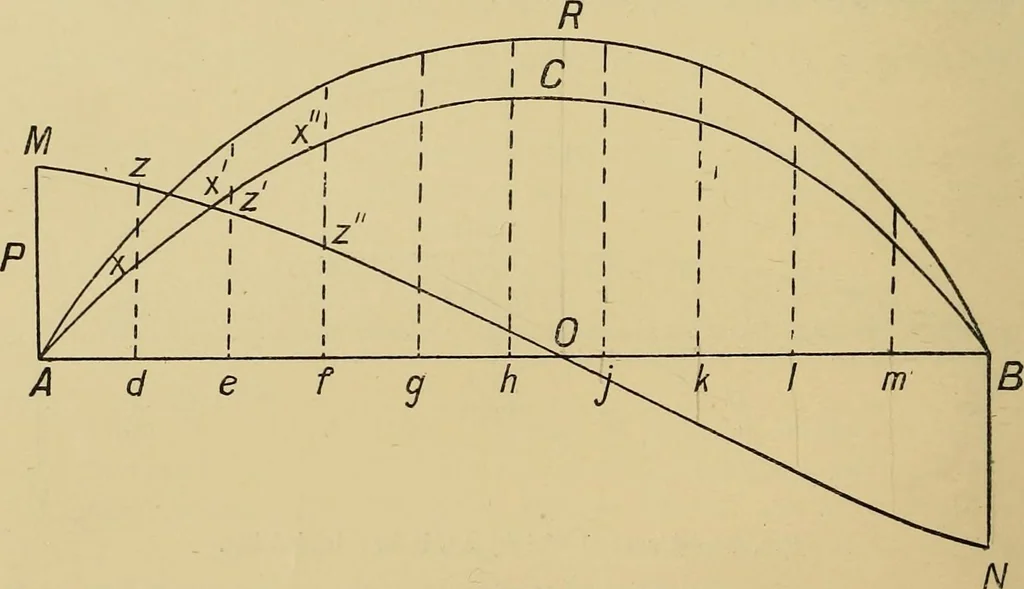

e drafting, the curve would have been above at the B endand below at the A end). Let M O IS be the curve of shearing stresses so obtained. The effect ofthese opposite, or negative and positive, shearing stresses, is to produce thetendency to rack or distort the beam by bending, and the point 0 is… … A d e f g h Fig. 39.—Curve of Shearing Stresses M 0 N, Curve of Bending Moments A R B(AC B Curve of Weights). From this curve of shearing stresses we are able to ascertain the bendingmoment at any point. As previously shown, the shearing stress at any point in the length of abeam or bar is simply…
