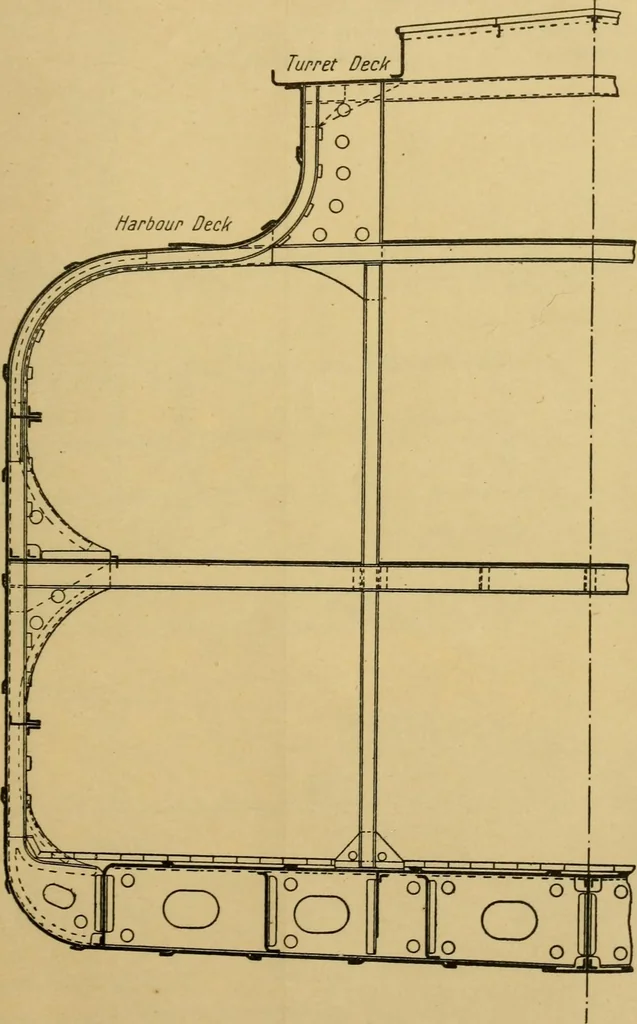

built upon the web-frame system, thereby dispensing withhold beams, but if preferred, deep framing might be adopted instead,or the ordinary frame and reverse bar (or some equivalent) together withwidely-spaced hold beams. But as it is necessary for trimming purposesthat the erection be in free… … Fig. 66.TRUNK STEAMER. Dimensions—Langlh B.P., 800 ft. Breadth « 10., 4S ft. Depth of Hold, HO ft. 5 ins. Depth H lO, H ft. S i
