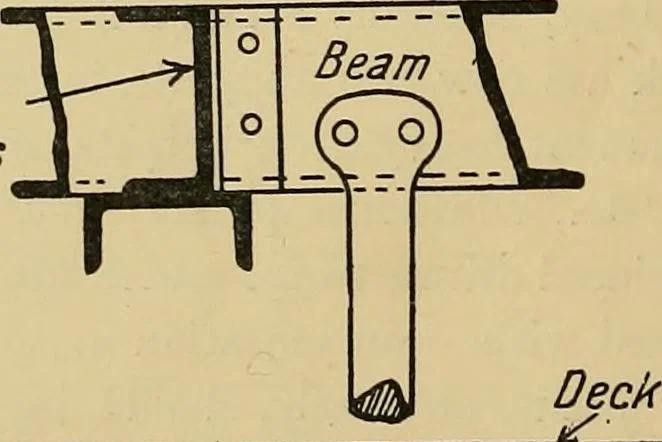

late Beam. s-J\tk^ ^ Ik Xii Fig. 120.—Connection of Pillar Headto Channel Bar Beam. A great point to be kept in view in the pillaring of a ship is to see thatthe pillars do not act as independe^it struts or ties, but that they distributetheir efficacy as far as practicable. Thus, especially in the… … Bean)^ Intercostalbetween Beam BeamIntercostal I r Continuous Fore ^ Aft Channel Bar Section of BeamsFig. 121.—Showing an excellent method of supportingSteel Decks in combination with Pillars. produce the tendency, when the pillar is subject to a compressive stress, tobulge up the deck in way of…
