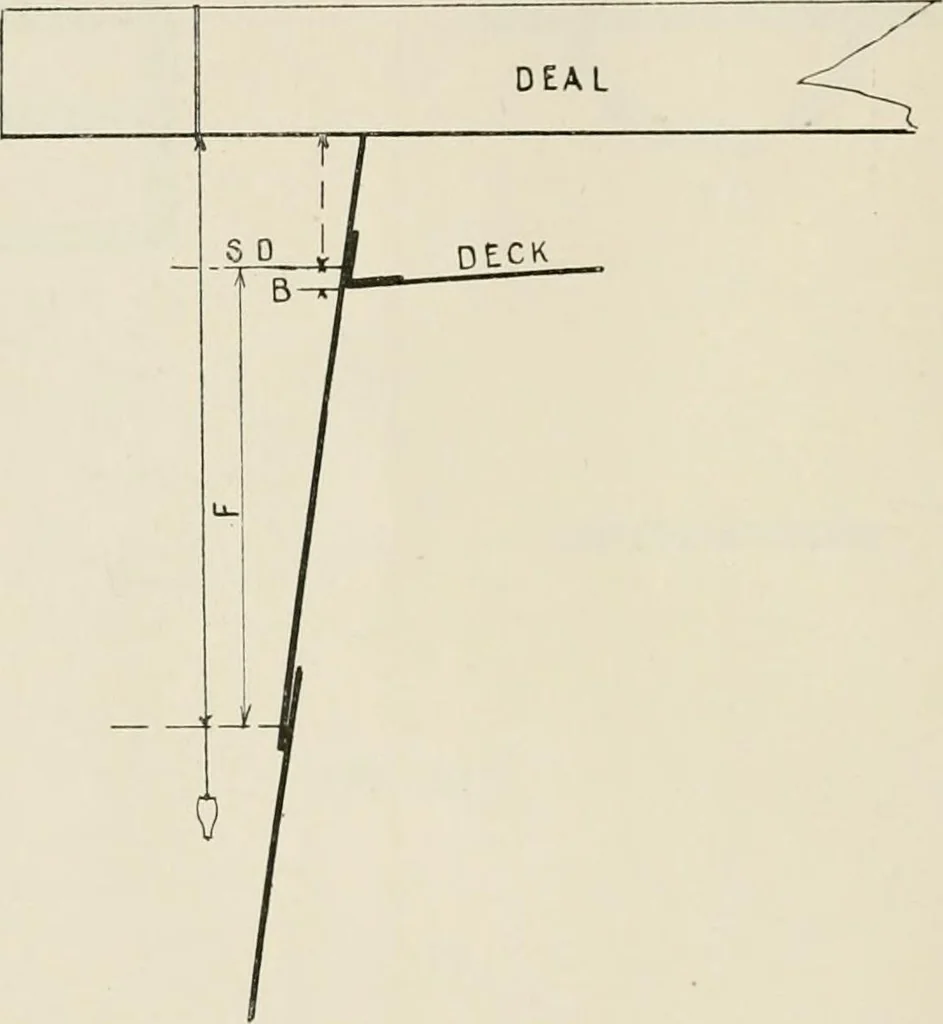

op ofeach Line. 106 NAVAL ARCHITECTURE. Mark on side plating the depth moulded line B, and above it indicatethe statutory deck line S D. Measure the height from S D to thedeal and add it to the required freeboard. Mark this on a straightbatten, and set it below the deal on the plumb-line, and… … or straight edge as A B in Fig. ioo, under the keel athwaitships inway of the midship frame, and one above it on the top of the sheerstrake edges C D. Drop a plumbed tape line from the top deal, clearof the side, and measure the depth between the inside edges of thedeals on each side of the vessel.…
