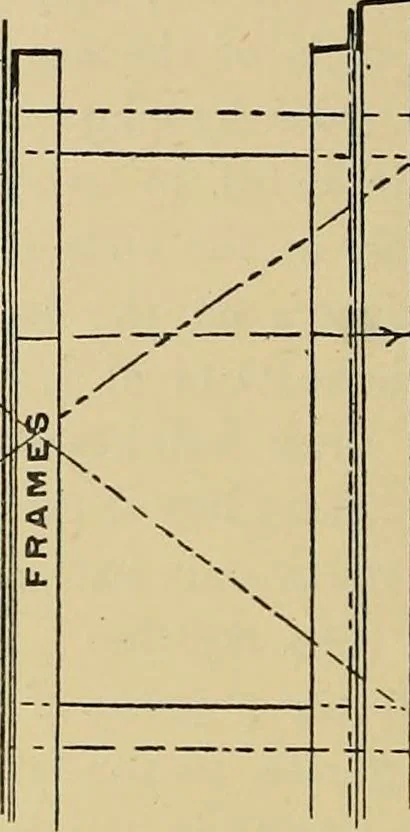

c Elevation ofBulkhead. Internal view of ship, showing connection ofBulkhead to Shell and Liner. ~1L / BULKHEAD M_ / 1L /SHELL PLATING B Plam Fig, 139.—Connection of Bulkhead to Shell. showing the diamond-shaped liner, is so clear as to need no comment.The spacing of the rivets in these bulkhead…
