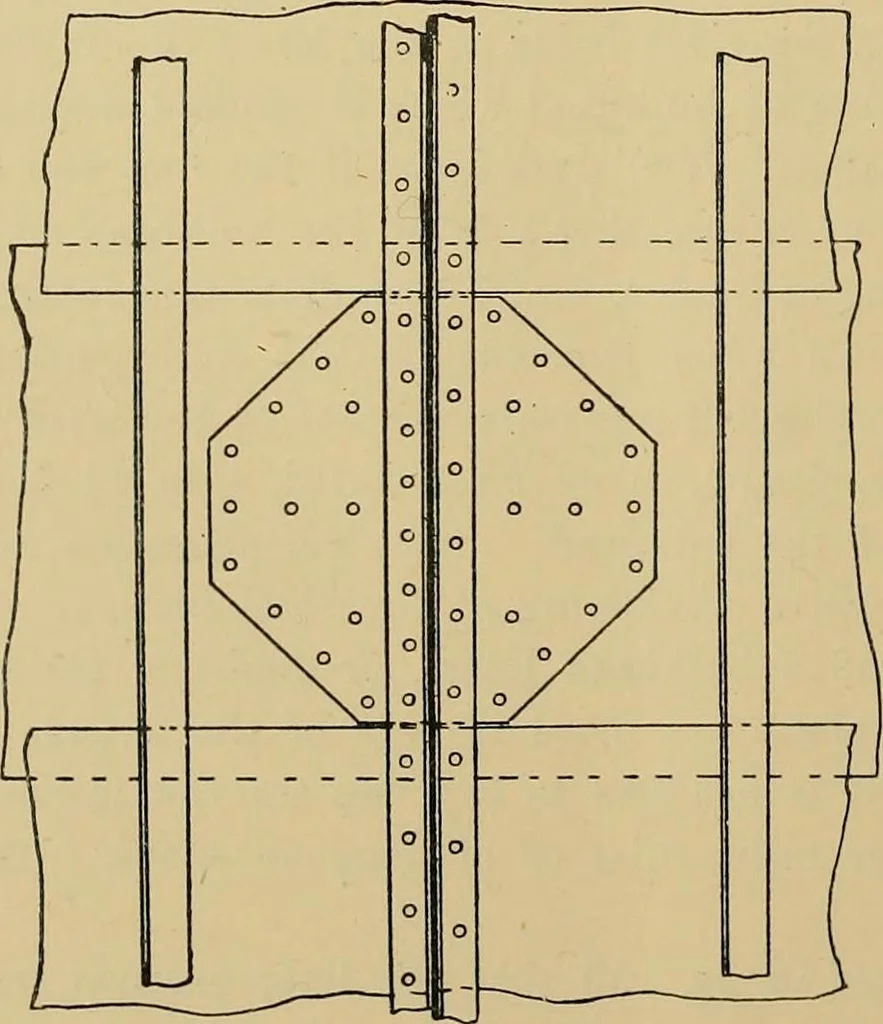

c Elevation ofBulkhead. Internal view of ship, showing connection ofBulkhead to Shell and Liner. ~1L / BULKHEAD M_ / 1L /SHELL PLATING B Plam Fig, 139.—Connection of Bulkhead to Shell. showing the diamond-shaped liner, is so clear as to need no comment.The spacing of the rivets in these bulkhead… … Fig. 140.—Bulkhead Diamond Liner. DETAILS OF CONSTRUCTION. 219 illustrated in the sketch. By means of these doubling plates, fitted fromgunwale to keel on the inside of all outside strakes of shell plating in vesselswith ordinary floors, and from gunwale to tank side in vessels with a doublebottom,…
