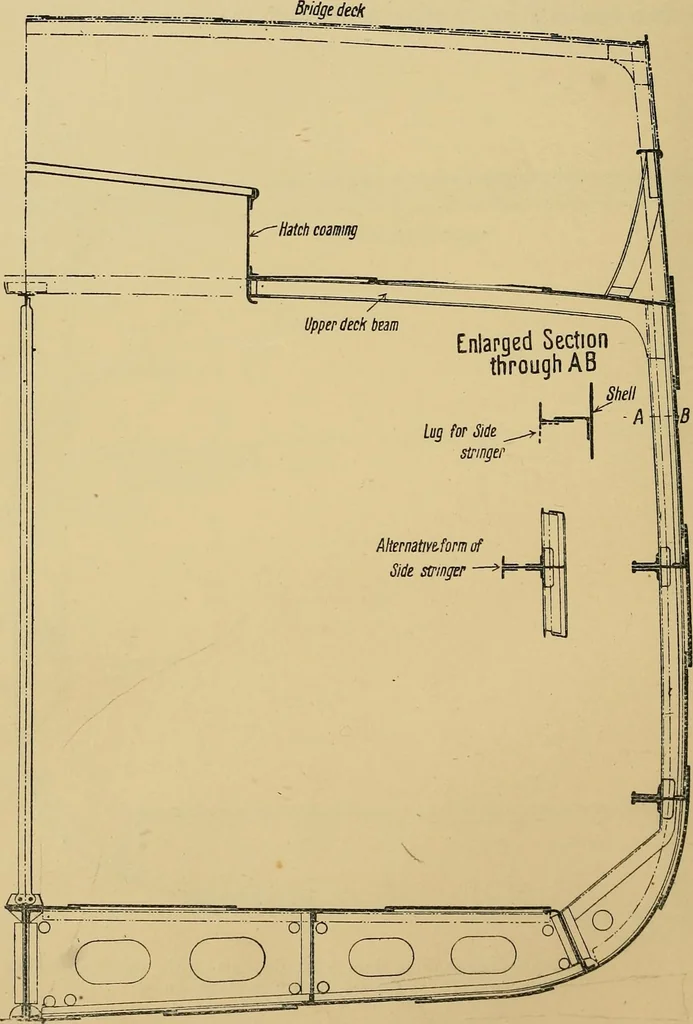

el as shown in fig. 7, and is of exactly the^same dimensionsand external form as fig. 10. In this case, the vesselj has a side barkeel, and is fitted with a double bottom. The hold]](beams are dispensedwith, and in lieu of them, transverse web frames are spaced on every sixth 46 STEEL SHIPS. frame… … Fig. 12.—Midship Section showing Hold Beams dispensed with, and Compensationin the form of Deep Framing introduced. an angle of ordinary frame size, and has two smaller angles fitted on itsinner edge, or a single bar of larger size (equivalent sectional area) may be MODES OF SHIP CONSTRUCTION. 47…
