Steel ships, their construction and maintenance : a manual for shipbuilders, ship superintendents, students, and marine engineers (1901)
Walton, Thomas · London : Charles Griffin & Co. ; Philadelphia : Lippincott · leaf 98

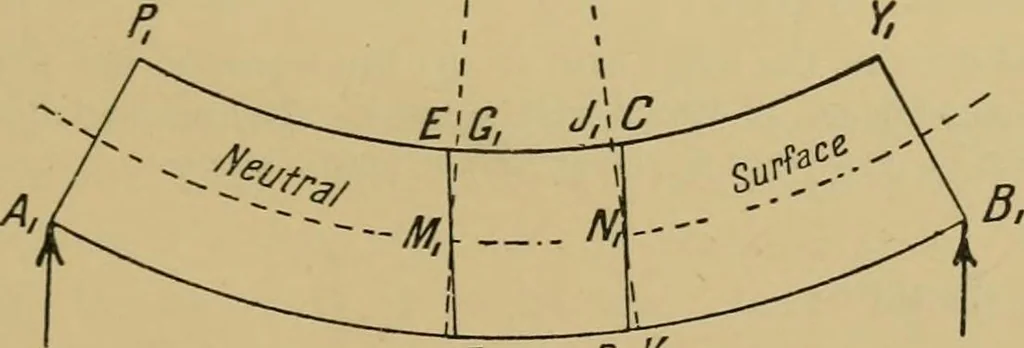

we have previously pointed out that theelongation varies directly in jjroportion to the stress. Similarly,the compression varies in direct proportion to the stress. Hence itfollows that as the upper and lower layers in the bar are furtherfrom the neutral axis than any intermediate one, the stresses… … H, F D K, Fig. 34.—Illustrating Elongation and Compression in a bent bar ;also Neutral Surface. Moment of Inertia. —Let fig. 35 represent an enlarged side view of thebent bar shown in fig. 34 (12 in. deep by 1 in. wide), and let A, B, C, D EF, G be iufinitesimally small units of area in the cross…
Naval architecture · Ships, Iron and steel
