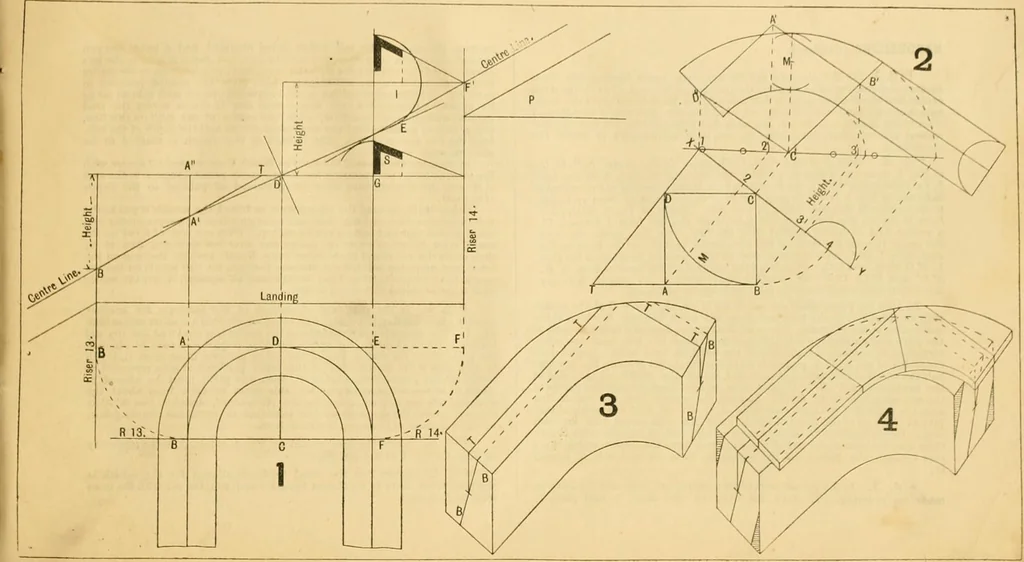

nes T T pricked off and the joints marked.The joints are made square to these lines, square over the lines on the ends,mark the centre of the stuff on these lines, then with tho bevel for each enddraw the lines B B through the centre of the stuff; square over these lines onthe face on both sides as… … HANDRAIUNG-Confmurf. Fig. 1. Is the plan of a rail for a quarter space landing, the riserslanding and starting beingplaced in the springing of tho well. The radius of theoentre line of rail being equal to half a tread, the pitch beard gives the incli-nation of both tangents. If a square block be…
