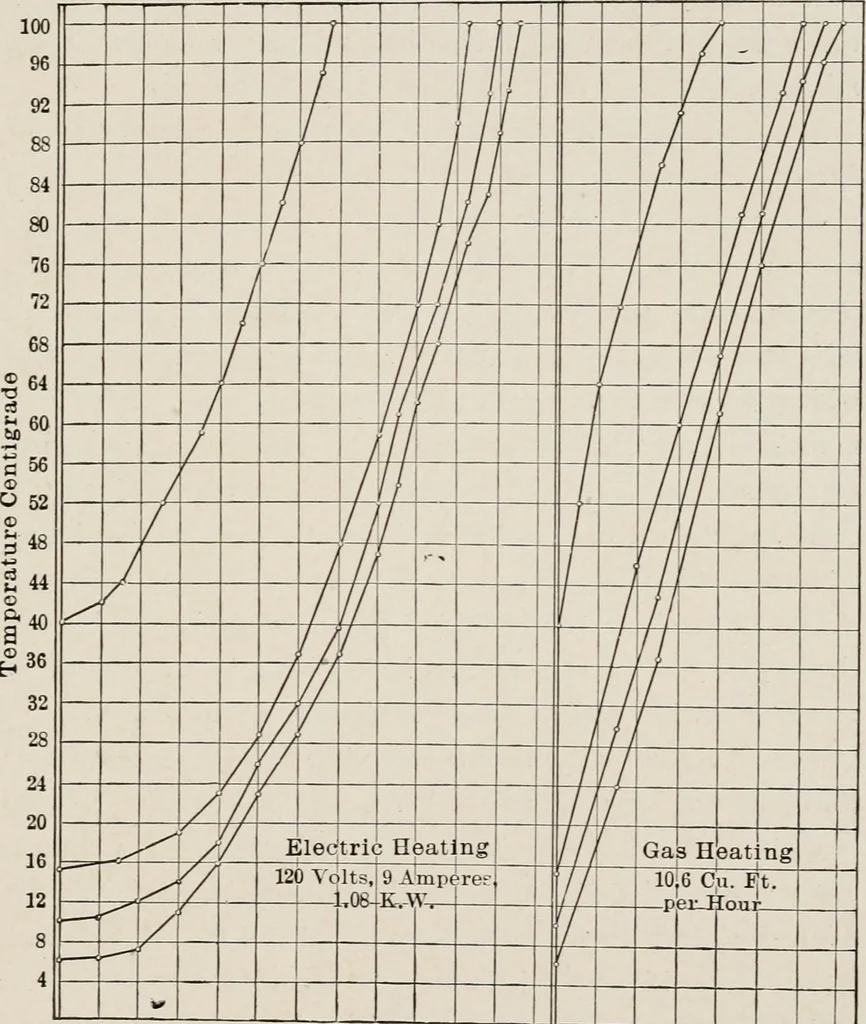

nutes to increase the temperature10° C. (18° F.) one meter above the stove, and 30 minutes forthe average temperature of the room to reach the same figure.The temperature of the air, one meter above the stove, risejvery gradually, it will be seen, to about 27° C, while the HEATING APPARATUS WITH… … 2 4 6 8 10 12 14 16 IS 20 22 24 2 4 6 8 10 12 14 Minutes FIG. 40. HEATING TO BOILING POINT OF ONE LITER OF WATER. curves, those on the left of the figure giving the rise of tem-perature in the time shown, with the Kryptol apparatus, andthose on the right the rise of temperature in the time…
