Cold storage, heating and ventilating on board ship (1911)
Walker, Sydney Ferris · New York : Van Nostrand · leaf 226

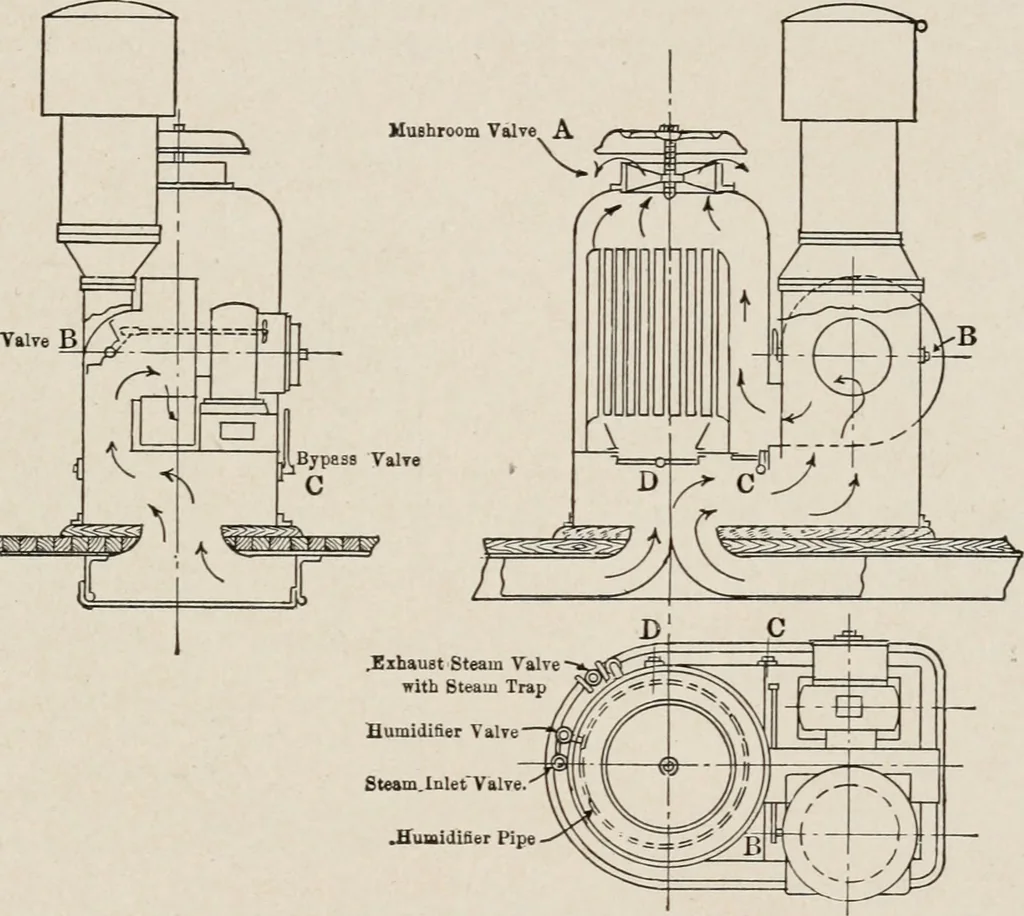

ill settling by the head, and eventu-ally it was discovered that the fore trysail boom had carriedaway one of the cowls, and in the darkness (it was at 4 A. M.)this had not been noticed. The ship had a well-deck, and the THE THERMOTANK SYSTEM. 217 sea had left a large quantity of water upon it,… … ^2^ Humidifier VaWeSteam.Inlet Valve..Humidifier Pipe - FIG. 56. TOP-SUCTION DECK-TYPE THERMOTANK EXHAUSTING AIR. motank Ventilating Company, of Glasgow, in which the venti-lating and heating or cooling arrangements are united in one,as shown in Figs. 55 to 60. The apparatus is arranged eitherto…
Ships -- Heating and ventilation · Cold storage on shipboard
