Structural analysis and design of airplanes (1920)
United States. Army. Air Corps · [Washington] · leaf 130

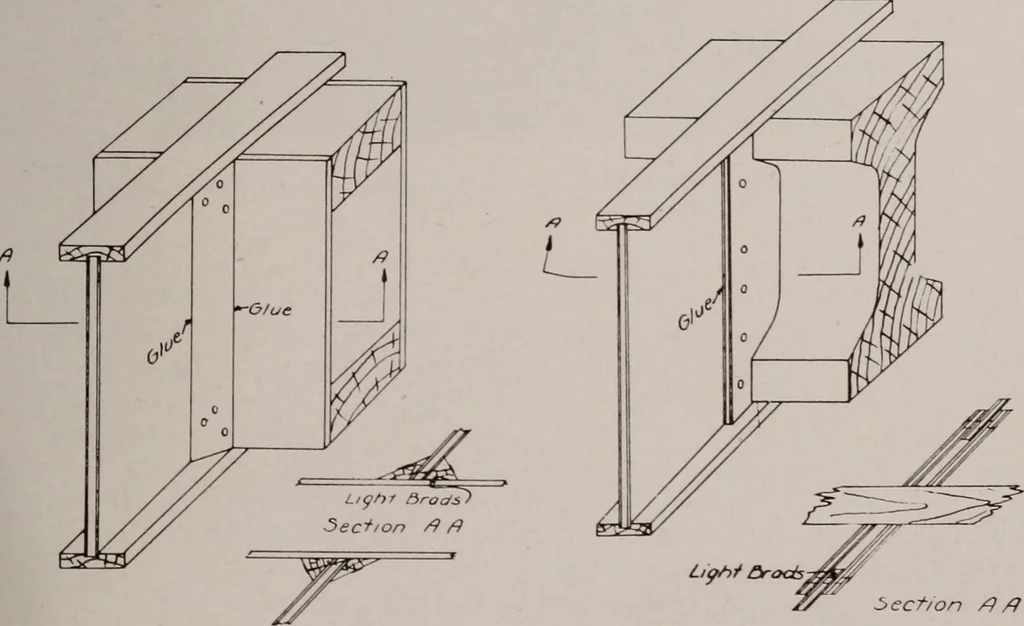

important consideration the results obtained areexcellent. The two methods recommended as satisfactory in every wayare those using the tape and glue, or the steel clip. 85. Thick Sections—In connection with a very thick wing sectionsuch as is found on the Fokker airplane it is suggested that… … Sect/on /?/? Fig. 68. Attachment of Ribs to Spar with Triangular Blocks. Fig. 69. Attachment of Ribs to Spar with Plywood Blocks. Ill Miscellaneous Design Art. 86
Airplanes
