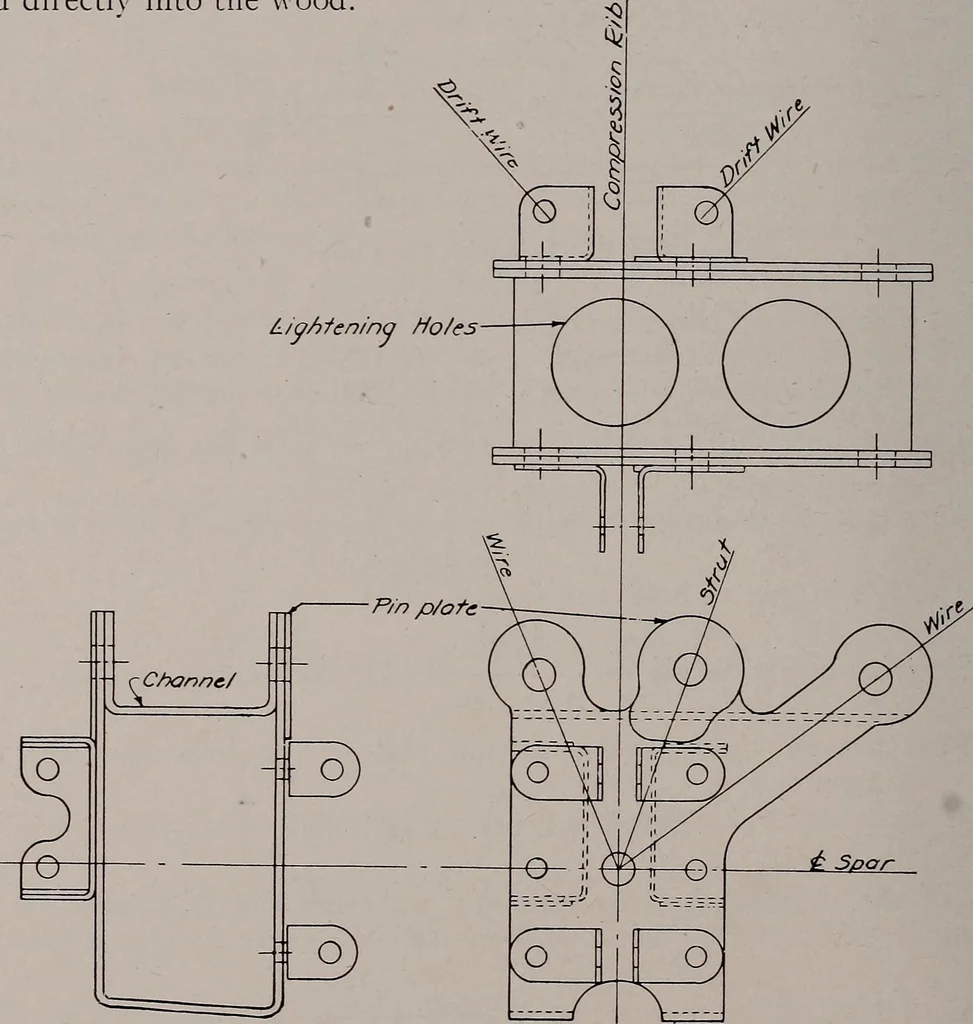

70 Bearing stress on bolt _ .25 (.0930+ .049)109. Wing Fitting—Fig. 93 is a wing-spar fitting developed by theAirplane Design Section. This is essentially a box fitting and illustratesvery clearly how eccentricities of struts and wires may be avoided. Itwill be noted that the lines of action of the… … Fig. 93. Wing Spar Fittings Without Eccentricities 142 CHAPTER V AIRPLANE CHASSIS 110. General Considerations—Until recently comparatively littlehad been done on the accurate stress analysis of chassis. Consequently,there has been less opportunity to corroborate by static test the resultsof the…
