Architectural engineering. With special reference to high building construction, including many examples of Chicago office buildings (1895)
Freitag, Joseph Kendall · New York, J. Wiley & sons; [etc., etc.] · leaf 174

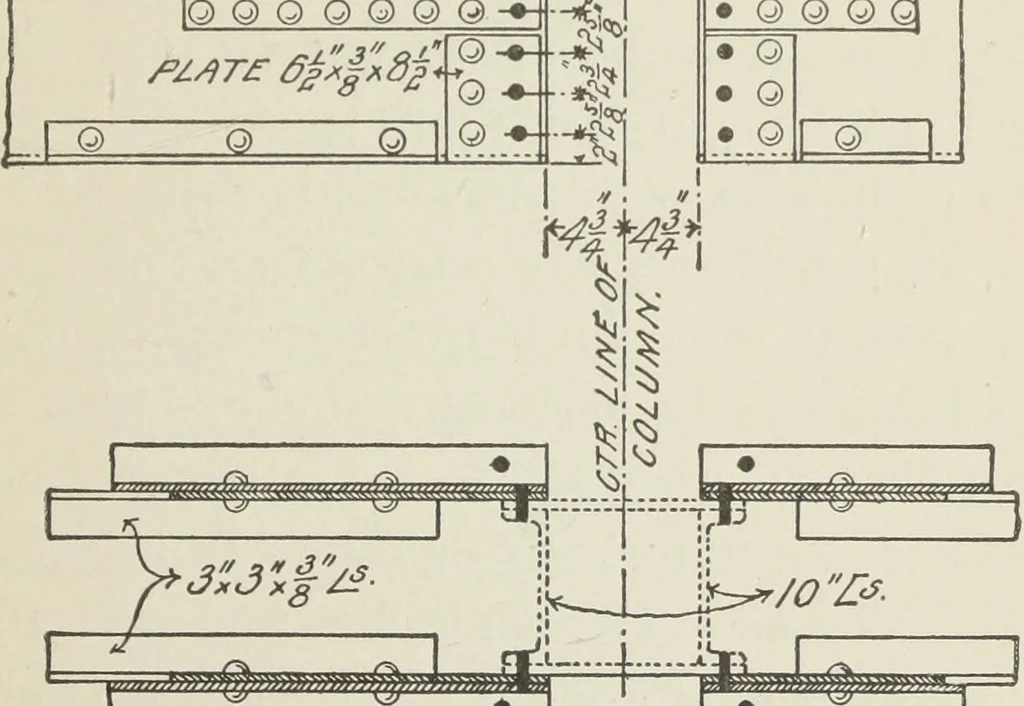

• © © 0 G • © • © • © 1 © 1 … Fig, 102.—Gusset-plate Bracing used in Fort Dearborn Building. the exterior walls, with gusset-plate connections to thecolumns, as shown in Fig. 102, 10 in. and 12 in. channelsbeing used generally. In the lower stories, where thewind moment necessitated it, a double system of gussetconnections was…Building, Iron and steel
