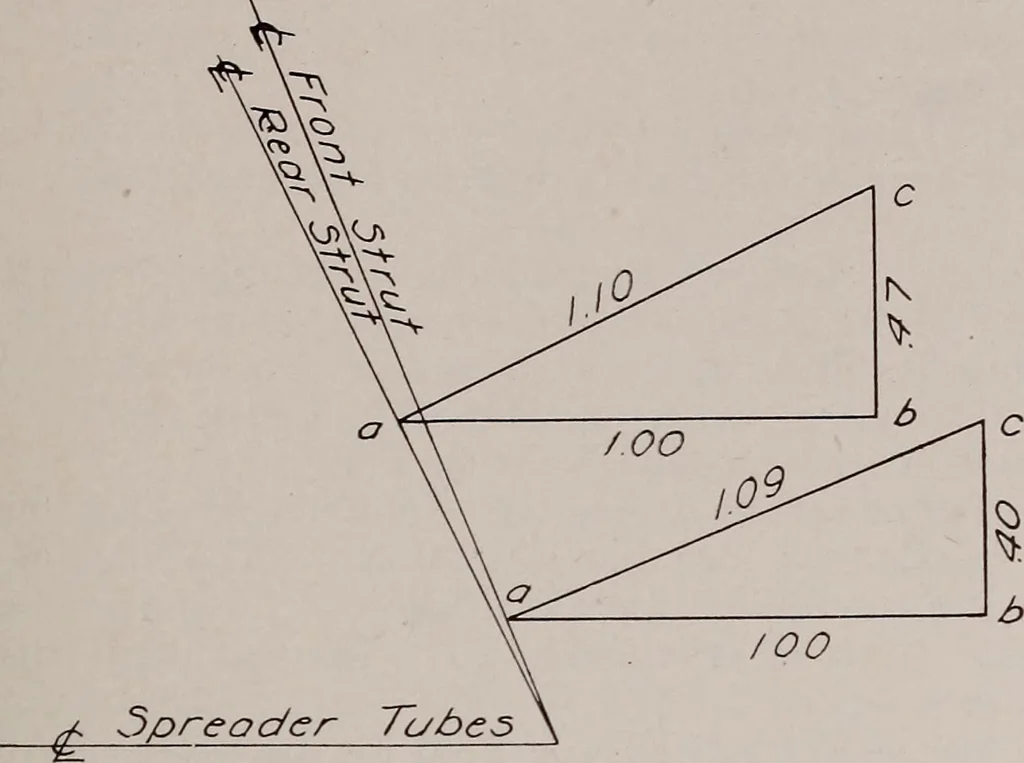

, while be represents the moment going into the spreader tubes.This latter moment causes compression in one tube and a tension in theother equal to the moment divided by the spacing of the tubes. It has been assumed that the spreader tubes do not assist in takingmoments that are in the plane of the… … Fig. 98. Resolution of Moments 119. Actual Stresses and Moments in Members. Vertical load on one wheel in level landingBackward thrust on one wheel in level landing-Forward thrust on one wheel in level landingSide thrust on one wheel in level landingTotal moment due to strut eccentricity in side…
