Structural analysis and design of airplanes (1920)
United States. Army. Air Corps · [Washington] · leaf 185

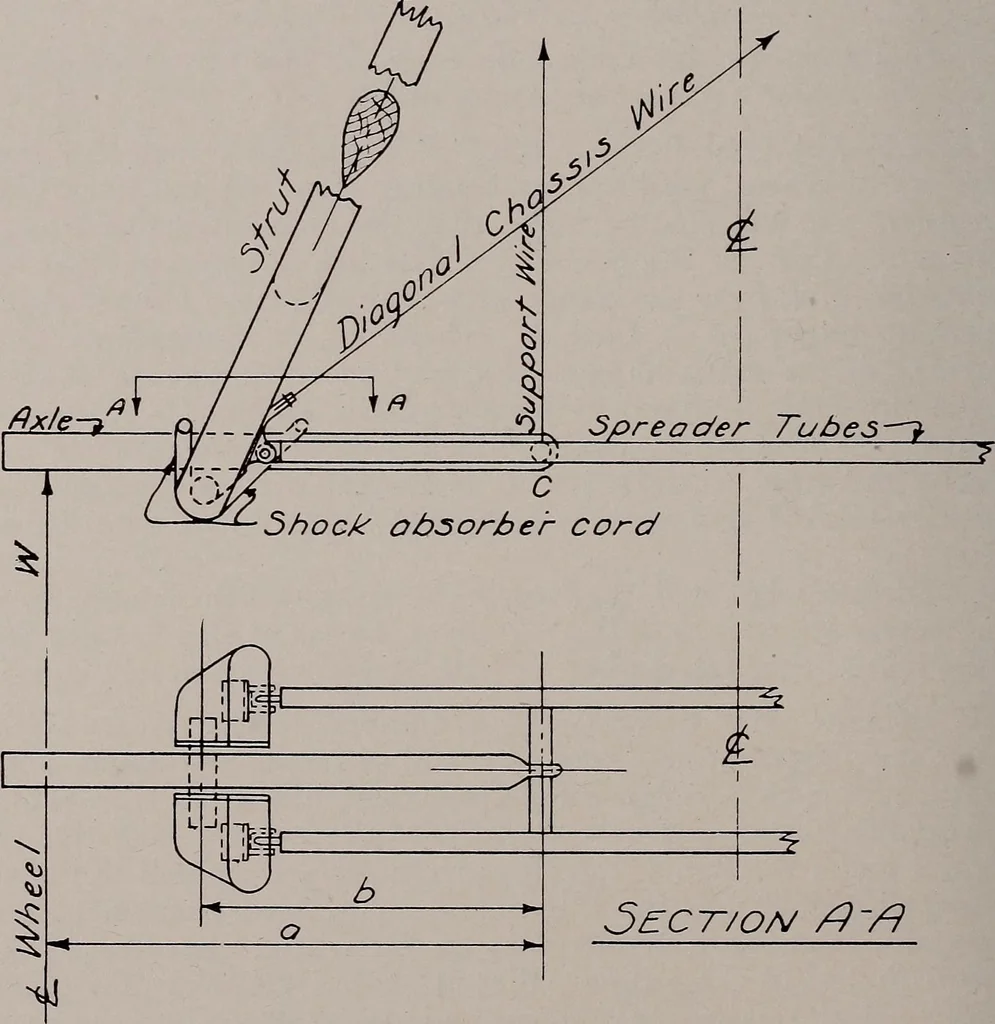

nt of this reaction is one of the most disadvan-tageous features of all hinged axle designs. If the wire at c is omitted, the spreader tubes must carry in bendingthe axle reaction at that point. This adds largely to their weight. Tohave them rigidly connected to the struts would partly relieve the… … Fig. 99. Chassis with Hinged Axles 166 Art. 121 Problems in Chassis Design
Airplanes
