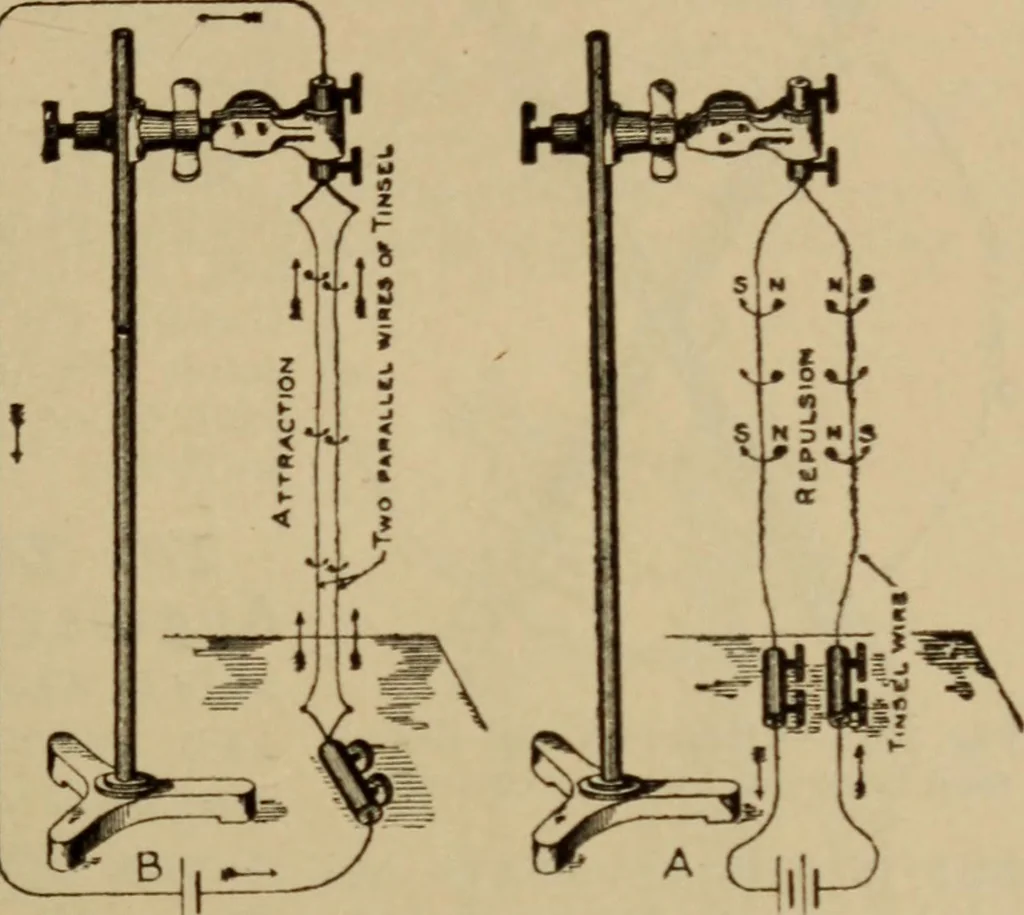

t the two adjacent sides are of the same polarity, thuscausing a force of repulsion to exist between them. Thewires tend to move away from each other. The field is very con-densed between thewires and elongatedoutside of them.Midway between thewires the lines of forceare in the same direc-tion and… … Fig. 246.—Attraction and Repulsion BetweenSuspended Tinsel Wires Carrying Currents. A—Currents in the opposite direction—repulsion.B—Currents in the same direction—attraction. Exp. 70: Supportfrom a suitable stand awire connector and suspend from the same two long, parallel, verticalpieces of…
