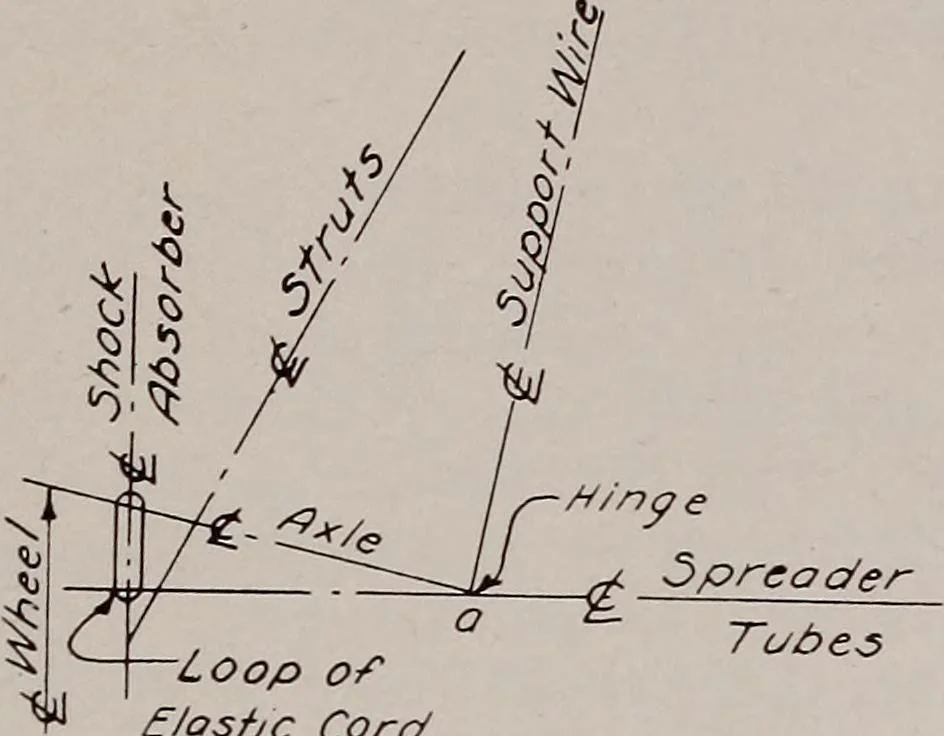

Fig. 99. Chassis with Hinged Axles 166 Art. 121 Problems in Chassis Design … -Loop ofElastic Cord Fig. 100 Fig. 100 is a line sketch illustrating a design in which the elastic cordis attached to the spreader tubes, which pass through the struts, ratherthan directly to the struts. Since the spreader tubes are subjected to aconsiderable bending moment their diameter and…
